Components [04/2020 - ]

WARNING: This page is about a different variant/trim than selected.

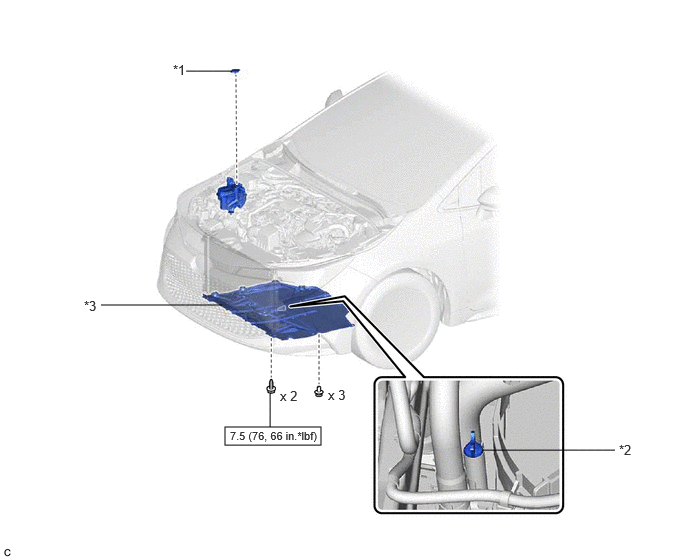

Fig 1: Coolant (For Engine) Replacement Components With Torque Specifications [04/2020 - ]

Callout	Description	Callout	Description
*1	RADIATOR CAP SUB-ASSEMBLY	*2	RADIATOR DRAIN COCK PLUG
*3	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
