Open in Bus 5 Main Bus Line [01/2019 - 09/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

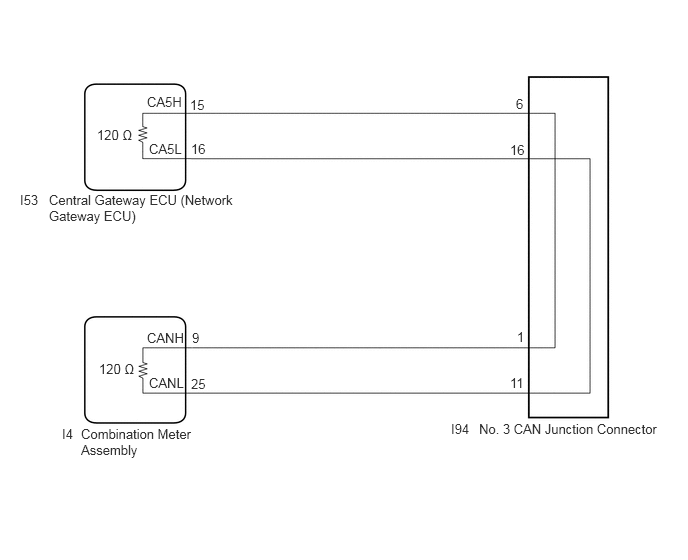

GTY855561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
