Open in Bus 4 Main Bus Line [01/2019 - 09/2022]: Procedure
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 5 CAN JUNCTION CONNECTOR)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the I96 No. 5 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 5 CAN Junction Connector)*b to No. 4 CAN Junction Connector *c to Central Gateway ECU (Network Gateway ECU) - - Standard Resistance
Tester Connection Condition Specified Condition Connected to I96-1 (CANH) - I96-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 4 CAN junction connector I96-2 (CANH) - I96-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Central gateway ECU (network gateway ECU) Result
Result Proceed to OK A NG (Line to central gateway ECU (network gateway ECU)) B NG (Line to No. 4 CAN junction connector) C
Result:
A
REPLACE NO. 5 CAN JUNCTION CONNECTOR
Result:
C
See step 3
Result:
B
See step 2
- CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 5 CAN JUNCTION CONNECTOR)
- Reconnect the I96 No. 5 CAN junction connector.
- Disconnect the I53 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I53-22 (CA2H) - I53-7 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [06/2018 - 09/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 5 CAN JUNCTION CONNECTOR)
- CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 4 CAN JUNCTION CONNECTOR)
- Reconnect the I96 No. 5 CAN junction connector.
- Disconnect the I95 No. 4 CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 4 CAN Junction Connector)*b to No. 5 CAN Junction Connector *c to Airbag Sensor Assembly - - Standard Resistance
Tester Connection Condition Specified Condition Connected to I95-7 (CANH) - I95-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω No. 5 CAN junction connector I95-8 (CANH) - I95-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Airbag sensor assembly Result
Result Proceed to OK A NG (Line to No. 5 CAN junction connector) B NG (Line to Airbag sensor assembly) C
Result:
A
REPLACE NO. 4 CAN JUNCTION CONNECTOR
Result:
B
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 4 CAN JUNCTION CONNECTOR - NO. 5 CAN JUNCTION CONNECTOR)
Result:
C
See step 4
- CHECK FOR OPEN IN CAN MAIN BUS LINES (AIRBAG SENSOR ASSEMBLY - NO. 4 CAN JUNCTION CONNECTOR)
- Reconnect the I95 No. 4 CAN junction connector.
- Disconnect the I47 airbag sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.

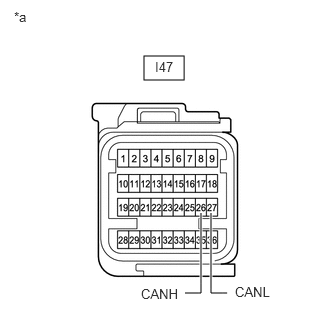

*a Front view of wire harness connector
(to Airbag Sensor Assembly)Standard Resistance
Tester Connection Condition Specified Condition I47-26 (CANH) - I47-27 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Result OK NG
Result:
OK
REPLACE AIRBAG SENSOR ASSEMBLY
Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (AIRBAG SENSOR ASSEMBLY - NO. 4 CAN JUNCTION CONNECTOR)
