Check Bus 1 Line [09/2022 - 11/2022]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.

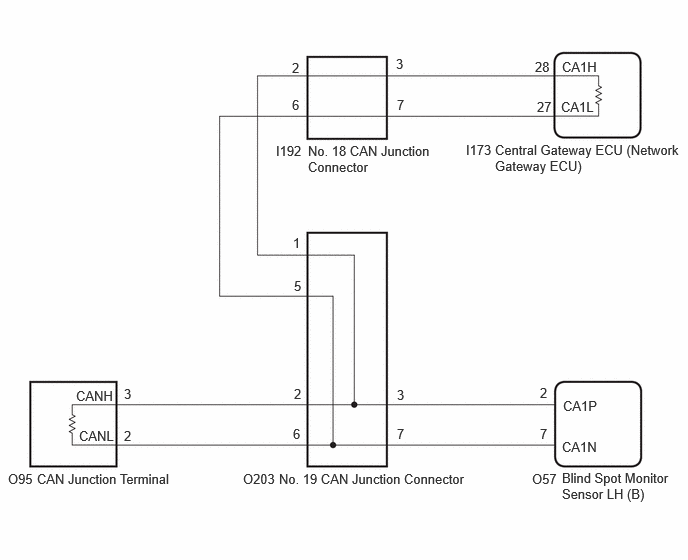

w/o Front Camera System with Blind Spot Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

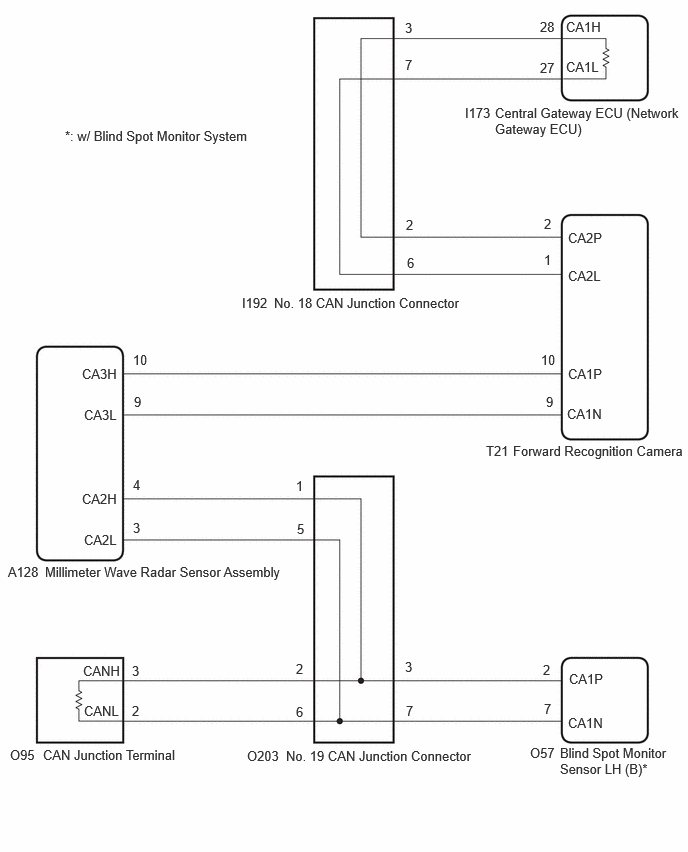

w/ Front Camera System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
