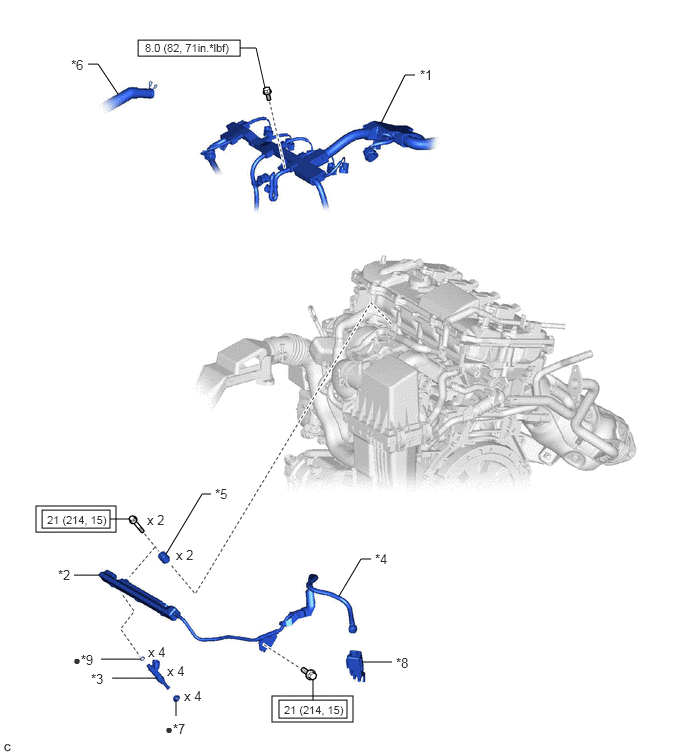

Components [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WIRE | *2 | FUEL DELIVERY PIPE SUB-ASSEMBLY |
| *3 | FUEL INJECTOR ASSEMBLY | *4 | FUEL TUBE SUB-ASSEMBLY |
| *5 | NO. 1 DELIVERY PIPE SPACER | *6 | NO. 2 VENTILATION HOSE |
| *7 | INJECTOR VIBRATION INSULATOR | *8 | NO. 1 FUEL PIPE CLAMP |
| *9 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
