Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.

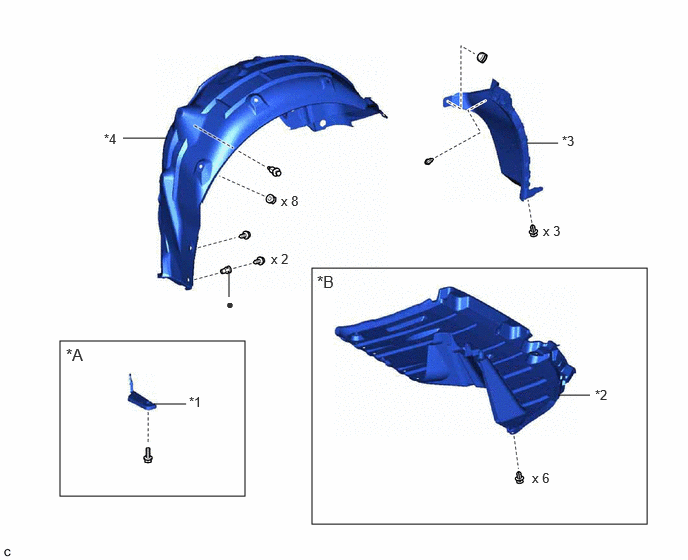

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Rear Wheel House Front Plate | *B | w/ No. 2 Floor Under Cover |
| *1 | REAR WHEEL HOUSE FRONT PLATE | *2 | NO. 2 FLOOR UNDER COVER |
| *3 | REAR BUMPER SIDE SEAL LH | *4 | REAR WHEEL HOUSE LINER LH |
| • | Non-reusable part | - | - |
Fig 2: Fuel Tank (W/O Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Cover | *B | for Type A |
| *C | for Type B | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

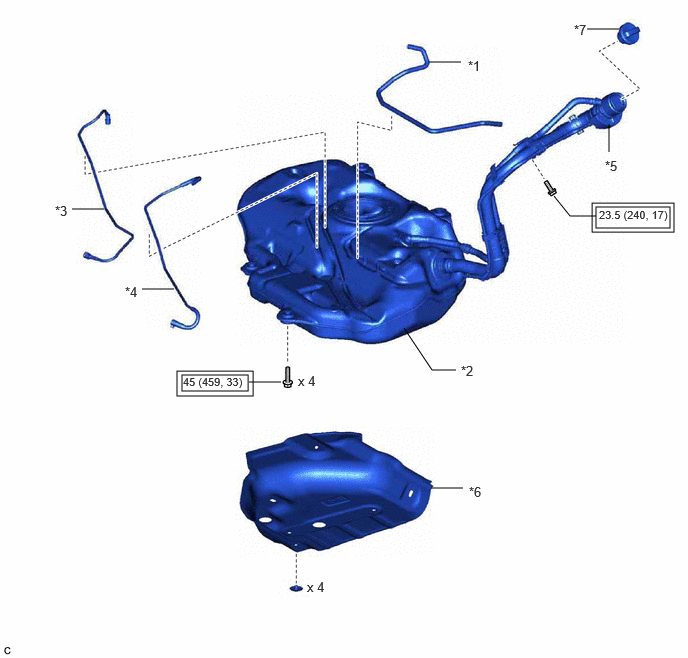

Fig 3: Fuel Tank (W/O Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CHARCOAL CANISTER OUTLET HOSE | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | NO. 1 FUEL EVAPORATION TUBE SUB-ASSEMBLY |
| *5 | FUEL TANK FILLER PIPE ASSEMBLY | *6 | NO. 1 FUEL TANK PROTECTOR |
| *7 | FUEL TANK CAP ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
