Removal [11/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

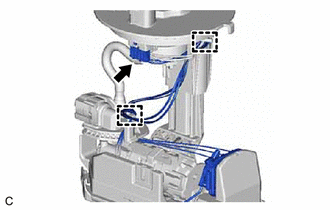

    1. Disconnect the fuel sender gauge assembly connector.
      GTY1250850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
      NOTE:
      • Do not damage the wire harness.
      • When disengaging each wire harness from the clamp, disengage one wire at a time.
    3. Disengage the 2 claws to remove the fuel gauge bracket with fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.
      GTY852221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.

    4. Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
      GTY929278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
