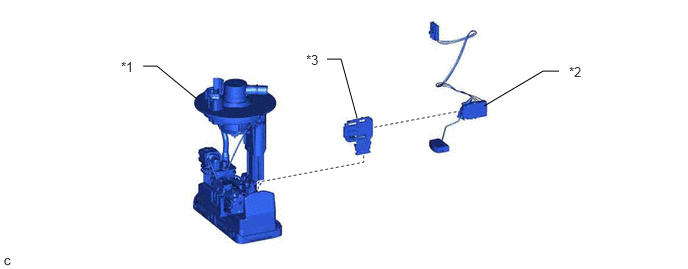

Components [01/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
*2 |
FUEL SENDER GAUGE ASSEMBLY |
| *3 |
FUEL GAUGE BRACKET |
- |
- |
