Reassembly [01/2019 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the fuel pump.

Refer to INITIALIZATION [01/2019 - 09/2022] , or refer to INITIALIZATION [09/2022 - ]

1. Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	O-ring
   *2	Fuel Pump Spacer

2. Engage the 3 claws to install the fuel pump to the fuel tube supporter.
   NOTE:

   Make sure that the O-ring is not cut or pinched during installation.

3. Engage the 4 claws to install the fuel suction plate sub-assembly to the fuel sub-tank sub-assembly.
4. Align the protrusion of the fuel sub-tank sub-assembly with the installation hole of the fuel suction plate sub-assembly and then slide the fuel suction plate sub-assembly to install the fuel sub-tank sub-assembly.

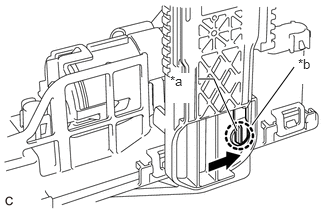

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   *b	Installation Hole
   	Slide

5. Connect the 2 fuel pump harness connectors.

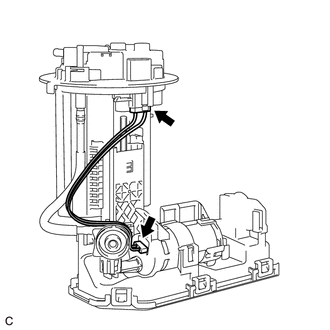

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  1
