Disassembly [01/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE FUEL SENDER GAUGE ASSEMBLY
See step 2 [01/2019 - 09/2022], or see step 2 [09/2022 - 11/2022], or see step 2 [11/2022 - ]

REMOVE FUEL PUMP

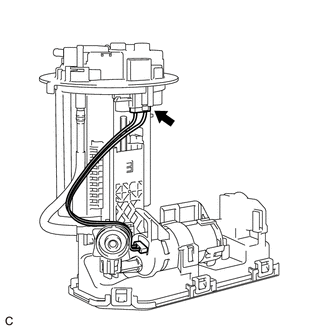

Disconnect the fuel pump harness connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

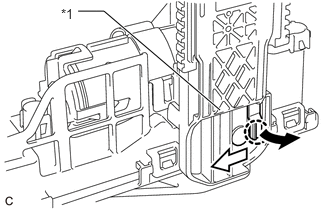

Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Suction Plate Sub-assembly
	Pull
	Slide

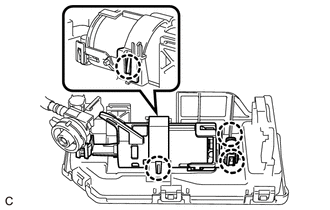

Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 3 claws and remove the fuel pump from the fuel tube supporter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fuel Tube Supporter

Disconnect the fuel pump harness connector.

Remove the O-ring and fuel pump spacer from the fuel pump.

*1	O-ring
*2	Fuel Pump Spacer
