Removal [09/2022 - 11/2022]: Procedure

Refer to REMOVAL [09/2022 - 11/2022]

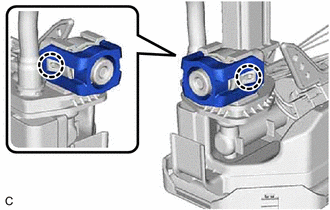

1. Disengage the 2 claws and remove the fuel pressure regulator holder from the fuel suction tube with pump and gauge assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

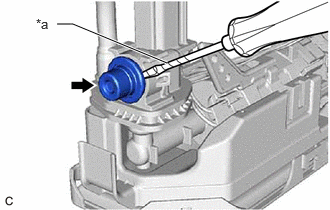

1. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly from the fuel suction tube with pump and gauge assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   • Pull out the fuel pressure regulator assembly carefully because the O-rings are firmly installed between the fuel pressure regulator assembly and fuel suction tube with pump and gauge assembly.
   • Do not damage the fuel suction tube with pump and gauge assembly.
2. Remove the 2 O-rings from the fuel pressure regulator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-ring
