Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

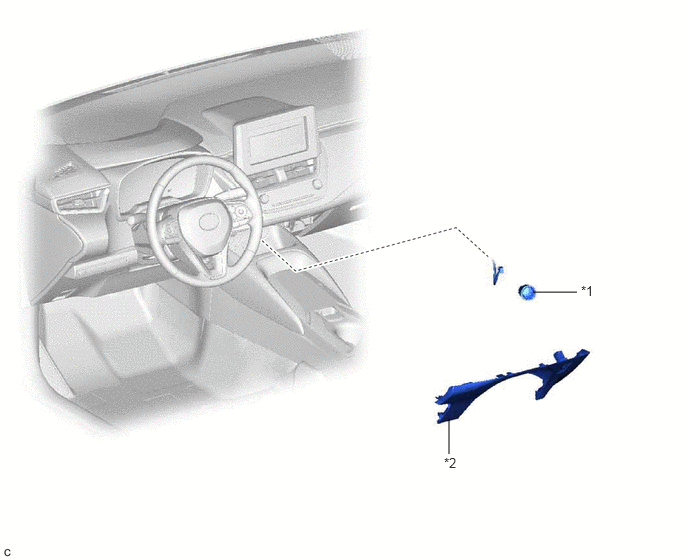

Fig 1: Power Switch Replacement Components
GTY853670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 POWER SWITCH *2 LOWER CENTER INSTRUMENT PANEL FINISH PANEL
