Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - ]

  2. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

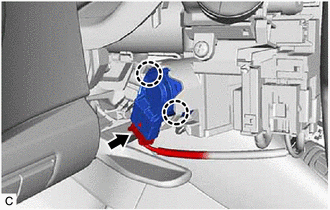

    1. Disconnect ignition or starter switch assembly connector.
      GTY932884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the ignition or starter switch assembly from the upper steering column bracket assembly.
