Inspection [09/2022 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT IGNITION OR STARTER SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

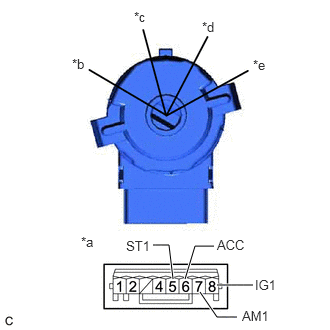

*a Component without harness connected
(Ignition or Starter Switch Assembly)*b LOCK *c ACC *d ON *e START Standard Resistance
Tester Connection Condition Specified Condition Between all terminals LOCK 10 kΩ or higher 6 (ACC) - 7 (AM1) ACC Below 1 Ω 6 (ACC) - 7 (AM1) - 8 (IG1) ON Below 1 Ω 5 (ST1) - 7 (AM1) - 8 (IG1) START Below 1 Ω If the result is not as specified, replace the ignition or starter switch assembly.
- Measure the resistance according to the value(s) in the table below.
