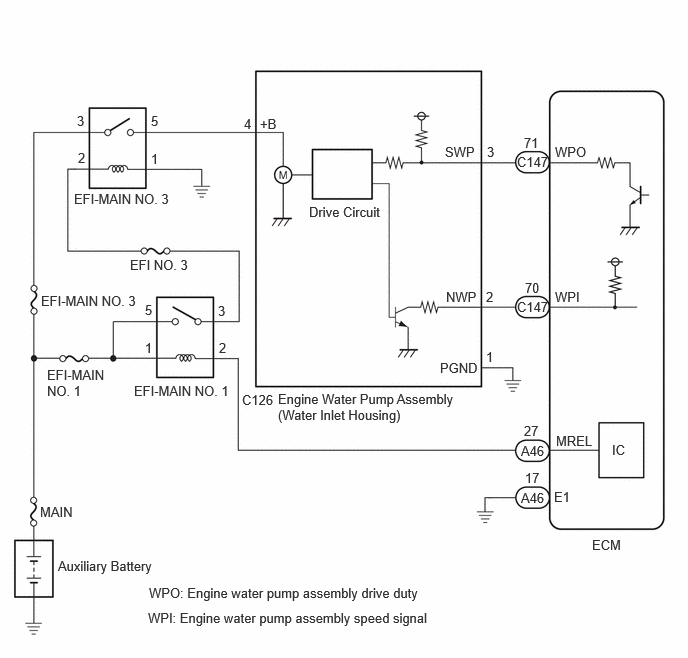

DTC P26CA-12: Engine Coolant Pump Circuit Short to Battery [09/2022 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1109101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
