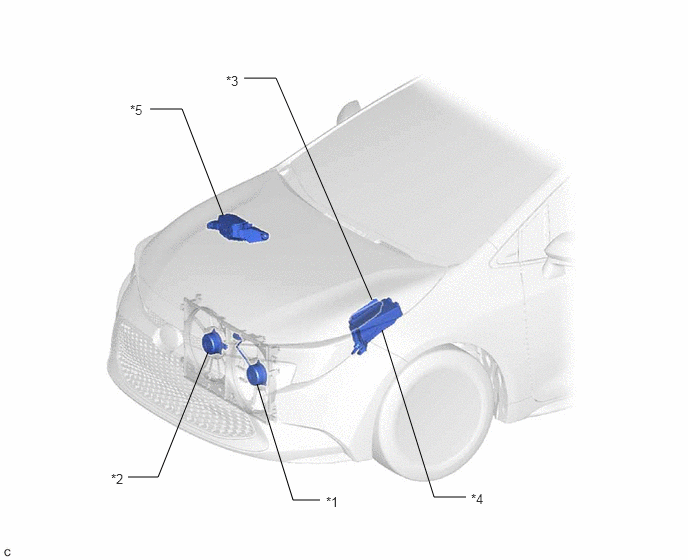

Parts Location [01/2019 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
COOLING FAN MOTOR LH |
*2 |
COOLING FAN MOTOR RH |
| *3 |
ECM |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- NO. 1 INTEGRATION RELAY
(EFI-MAIN RELAY)
- FAN NO. 2 RELAY
- FAN NO. 3 RELAY |
| *5 |
NO. 2 RELAY BLOCK
- FAN NO. 1 RELAY |
- |
- |
