Section 4 (Engine Cooling Fan System (2ZR-FXE) - Diagnostics & Circuit Tests)
>>
Cooling Fan System
>>
Cooling Fan Circuit [01/2019 - ]
>>
Wiring Diagram

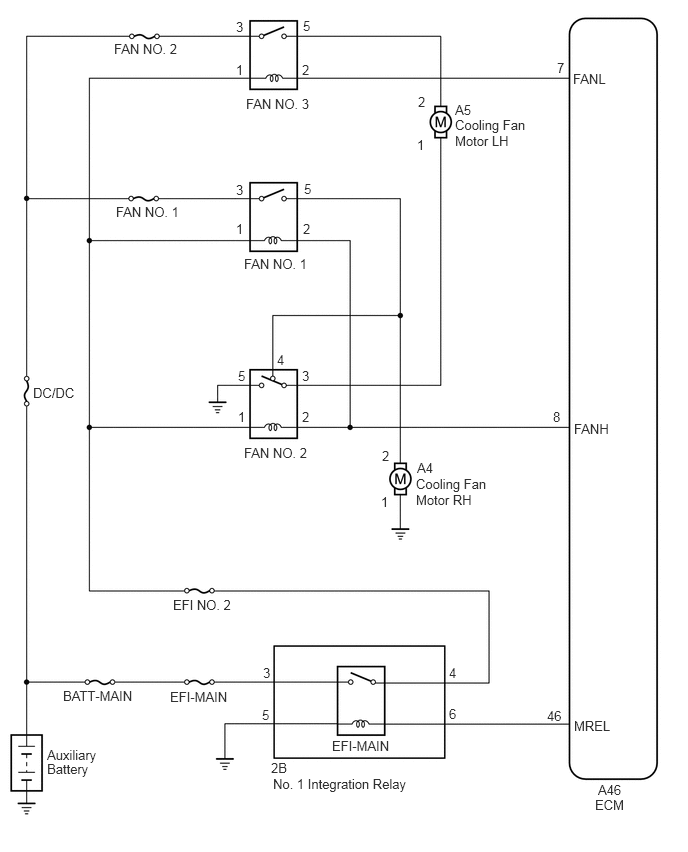

Cooling Fan Circuit [01/2019 - ]: Wiring Diagram
