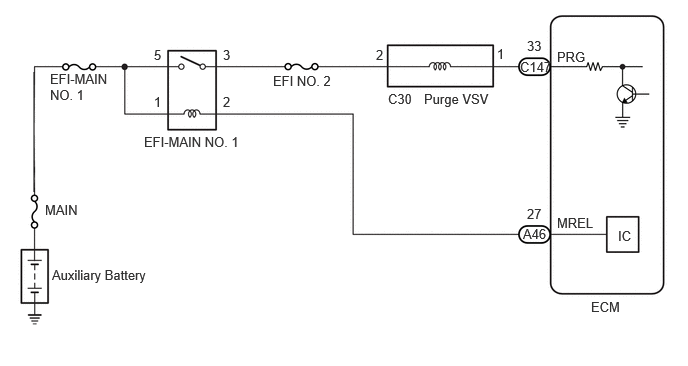

DTC P0443-13: Evaporative Emission System Purge Control Valve "A" Circuit Open [09/2022 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1105479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
