Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

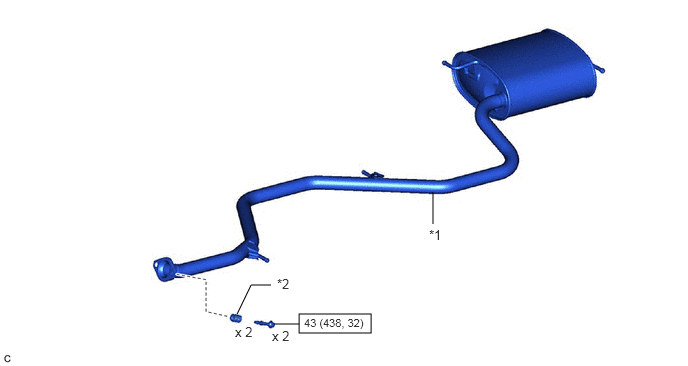

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	TAIL EXHAUST PIPE ASSEMBLY	*2	COMPRESSION SPRING
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

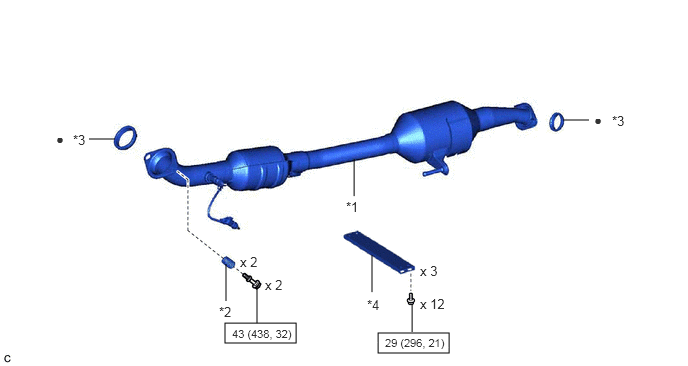

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	COMPRESSION SPRING
*3	GASKET	*4	FRONT FLOOR CENTER BRACE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

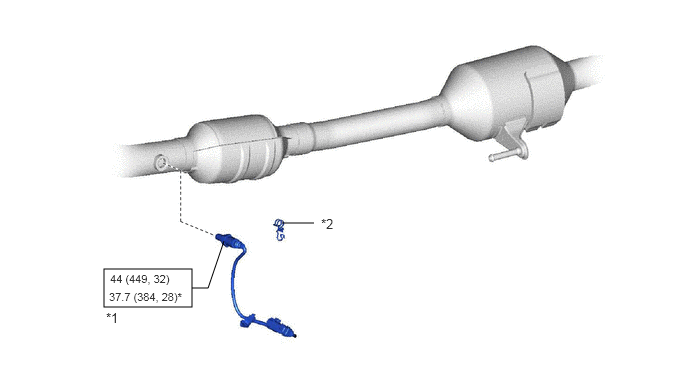

Fig 4: Exhaust Pipe Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	HEATED OXYGEN SENSOR	*2	WIRE HARNESS CLAMP BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
