Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications [09/2022 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

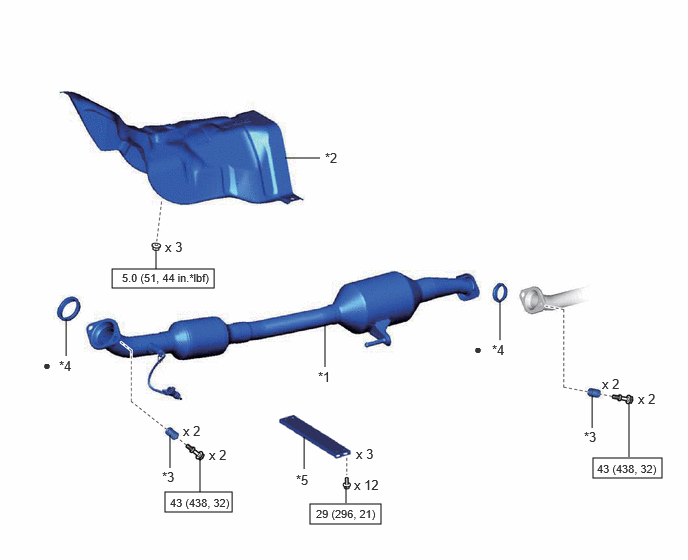

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications [09/2022 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	FRONT NO. 1 FLOOR HEAT INSULATOR
*3	COMPRESSION SPRING	*4	GASKET
*5	FRONT FLOOR CENTER BRACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 3: Exhaust Manifold Replacement Components With Torque Specifications [09/2022 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

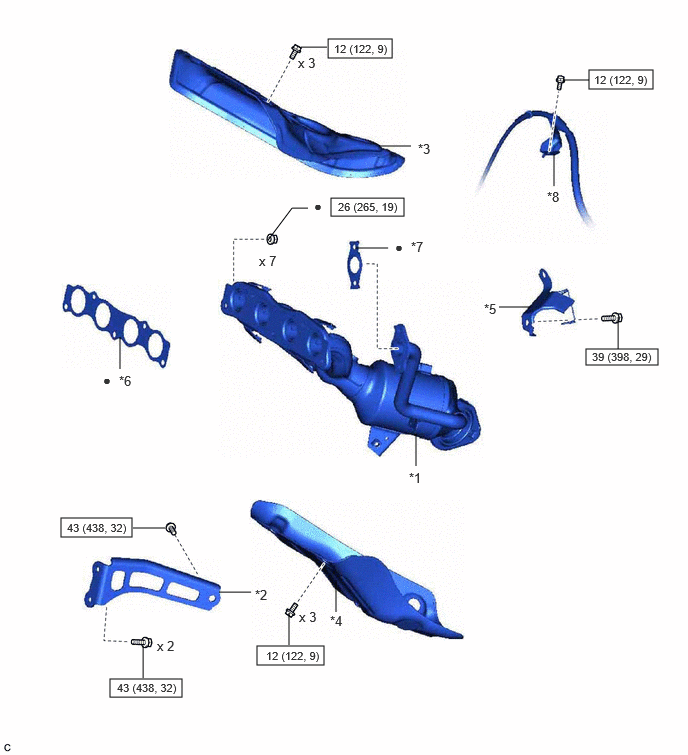

Fig 4: Exhaust Manifold Replacement Components With Torque Specifications [09/2022 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	EXHAUST MANIFOLD (TWC: Front Catalyst)	*2	MANIFOLD STAY
*3	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	*4	NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*5	WIRING HARNESS CLAMP BRACKET	*6	EXHAUST MANIFOLD TO HEAD GASKET
*7	EGR COOLER GASKET	*8	FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
