Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

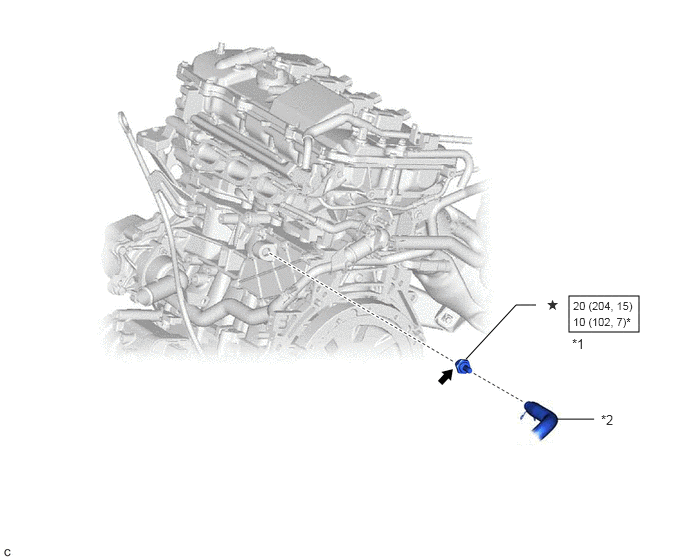

Fig 1: PCV Valve Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	*2	VENTILATION HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a 22 mm ball joint lock nut wrench
	Adhesive 1324	*	Precoated part
