Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)
    1. for 2WD

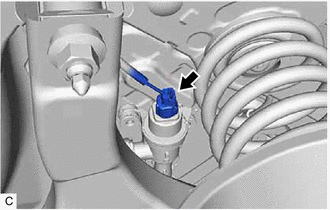

      GTY1108426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.
    2. for AWD

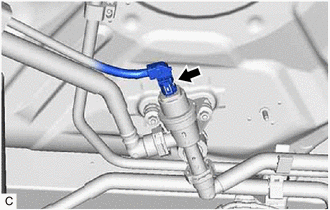

      GTY1103515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.
    3. Disconnect the fuel tank vent hose sub-assembly and fuel tank vent hose from the fuel vapor containment valve (fuel tank solenoid main valve assembly).

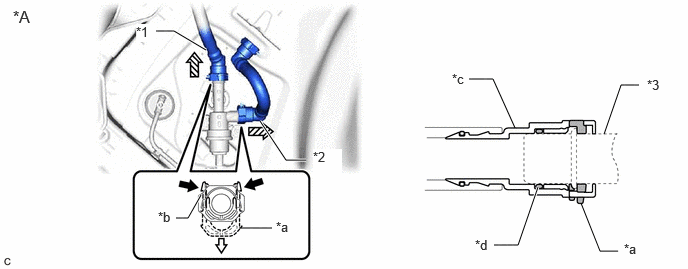

      GTY1109178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD - -
      *1 Fuel Tank Vent Hose Sub-assembly *2 Fuel Tank Vent Hose
      *3 Pipe (Fuel Vapor Containment Valve (Fuel Tank Solenoid Main Valve Assembly)) - -
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      Pull off - -

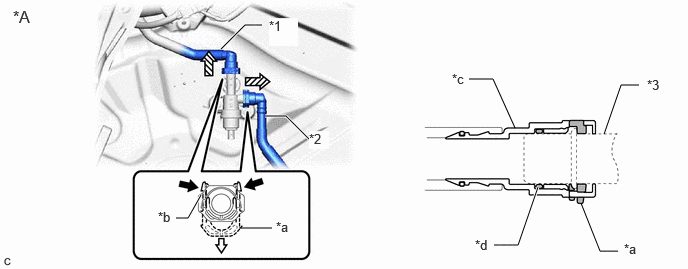

      GTY1108184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for AWD - -
      *1 Fuel Tank Vent Hose Sub-assembly *2 Fuel Tank Vent Hose
      *3 Pipe (Fuel Vapor Containment Valve (Fuel Tank Solenoid Main Valve Assembly)) - -
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      Pull off - -
      NOTE:
      • Remove any dirt or foreign matter on the tube connectors before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connectors have an O-ring that seals the pipe.
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly and fuel tank vent hose.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose sub-assembly and fuel tank vent hose.
      • If the tube connector and pipe are stuck, push and pull to release them.

      HINT:

      Do not remove the retainer.

      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
      2. Pull off the fuel tank vent hose sub-assembly and fuel tank vent hose.
    4. for 2WD

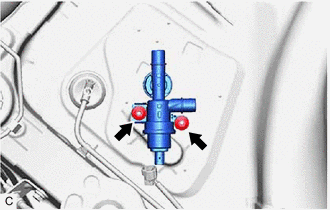

      GTY1103514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts and fuel vapor containment valve (fuel tank solenoid main valve assembly) from the vehicle body.
    5. for AWD

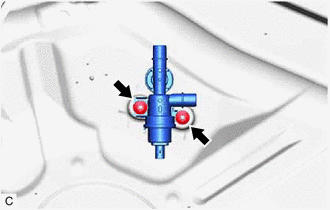

      GTY1103512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 nuts and fuel vapor containment valve (fuel tank solenoid main valve assembly) from the vehicle body.
