Components [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.

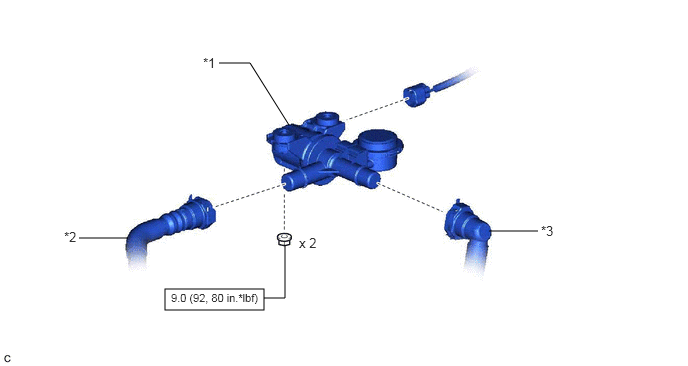

Fig 1: Fuel Vapor Containment Valve (W/ Canister Pump Module) Replacement Components With Torque Specifications [01/2019 - 09/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY) | *2 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *3 | FUEL TANK VENT HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
