Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1
REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [09/2022 - ]
REMOVE EGR PIPE ASSEMBLY
Refer to PROCEDURE - Step 8

REMOVE EGR VALVE ASSEMBLY

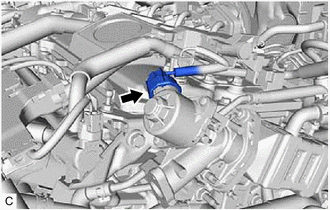

Disconnect the EGR valve assembly connector.

GTY1103478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

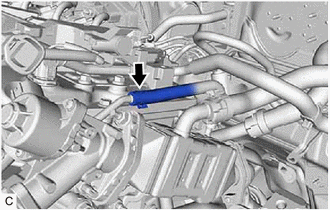

Slide the clip and disconnect the No. 6 water by-pass hose from the EGR valve assembly.

GTY1103479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the clip and disconnect the water by-pass hose from the EGR valve assembly.

GTY603533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

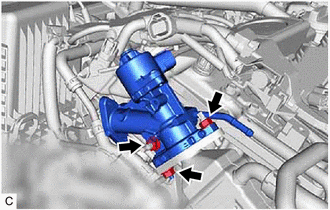

Remove the 3 nuts.

GTY1103477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

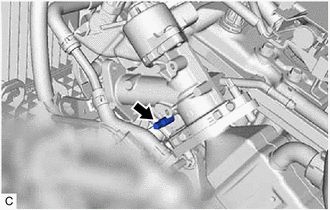

Using an E8 "TORX" socket wrench, remove the stud bolt from the camshaft housing sub-assembly.

GTY1108417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If a stud bolt is deformed or the threads are damaged, replace it.

Remove the EGR valve assembly from the EGR pipe with cooler sub-assembly.

Remove the EGR valve gasket from the EGR valve assembly.

GTY565480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
