Removal [11/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  3. REMOVE EGR PIPE ASSEMBLY

    Refer to PROCEDURE - Step 8

  4. DISCONNECT WATER BY-PASS HOSE
    1. Slide the clip and disconnect the water by-pass hose from the EGR valve assembly.
      GTY603533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

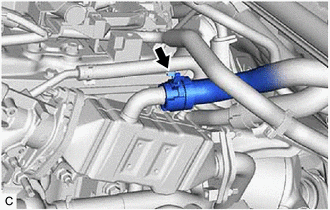

  5. DISCONNECT INLET HEATER WATER HOSE
    1. Slide the clip and disconnect the inlet heater water hose from the EGR pipe with cooler sub-assembly.
      GTY1106482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 4 water by-pass hose from the EGR pipe with cooler sub-assembly.
      GTY565479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE EGR PIPE WITH COOLER SUB-ASSEMBLY
    1. Disconnect the EGR valve assembly connector.
      GTY565426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and disconnect the EGR pipe with cooler sub-assembly from the exhaust manifold (TWC: Front Catalyst).
      GTY565493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and 2 nuts and disconnect the EGR pipe with cooler sub-assembly with the EGR valve assembly from the cylinder head sub-assembly and camshaft housing sub-assembly.
      GTY551308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    4. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the cylinder head sub-assembly and camshaft housing sub-assembly.
      GTY565490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If a stud bolt is deformed or the threads are damaged, replace it.

    5. Remove the EGR pipe with cooler sub-assembly with the EGR valve assembly.
      GTY565642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the EGR cooler gasket from the EGR pipe with cooler sub-assembly.
      GTY603499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Slide the clip and disconnect the No. 6 water by-pass hose from the EGR pipe with cooler sub-assembly.
      GTY565489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 2 nuts and EGR pipe with cooler sub-assembly from the EGR valve assembly.
      GTY565491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the EGR valve gasket from the EGR valve assembly.
      GTY565480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Using an E8 "TORX" socket wrench, remove the 3 stud bolts from the EGR pipe with cooler sub-assembly.

      HINT:

      If a stud bolt is deformed or the threads are damaged, replace it.

      GTY555297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
