Inspection [01/2019 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- CHECK CANISTER (FUEL SUCTION PLATE SUB-ASSEMBLY)
- Visually check the canister (fuel suction plate sub-assembly).
- Visually check the canister (fuel suction plate sub-assembly) for cracks or damage.
If cracks or damage are found, replace the canister (fuel suction plate sub-assembly).
- Visually check the canister (fuel suction plate sub-assembly) for cracks or damage.
- Inspect the ventilation of the canister (fuel suction plate sub-assembly).
- Apply compressed air to the port (A) and check that the air flows out from the port (B).
OK
The air flows from the port (B).

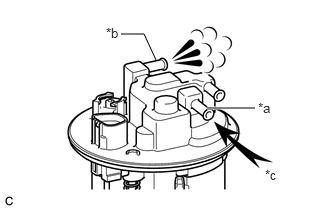

*a Port (A) *b Port (B) *c Air - Close the port (A), apply compressed air to the port (B).
*a Port (A) *b Port (B) *c Air OK
Air does not flow at first. By gradually increasing the pressure, air flows when the pressure in the port reaches a certain level.
- Using a vacuum pump, apply vacuum to the port (B) with the port (A) closed.

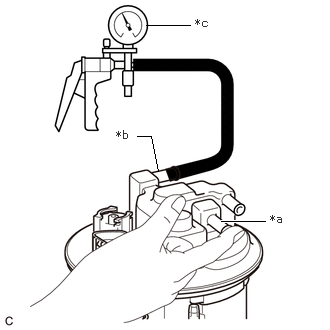

*a Port (A) *b Port (B) *c Vacuum Pump OK
The vacuum is maintained at first. By gradually increasing the vacuum, air flows and the vacuum decreases after the vacuum reaches a certain level.
- Apply compressed air to the port (A) and check that the air flows out from the port (B).
- Visually check the canister (fuel suction plate sub-assembly).
