Components [01/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

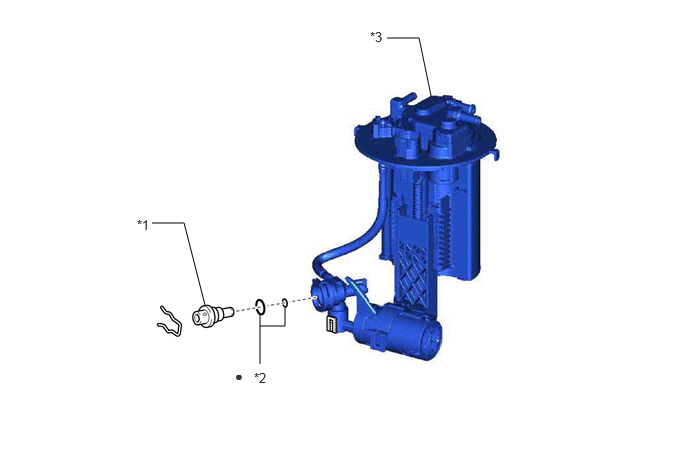

| Callout |
Description |
Callout |
Description |
| *1 |
FUEL PRESSURE REGULATOR ASSEMBLY |
*2 |
O-RING |
| *3 |
CANISTER (FUEL SUCTION PLATE SUB-ASSEMBLY) |
- |
- |
| • |
Non-reusable part |
- |
- |
