Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE TAIL EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE REAR FLOOR SIDE MEMBER COVER LH (w/ Cover)
1. for 2WD
  Refer to PROCEDURE - Step 2 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 2 [11/2022 - ]
REMOVE REAR FLOOR SIDE MEMBER COVER RH (w/ Cover)
1. for 2WD
  Refer to PROCEDURE - Step 3 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 3 [11/2022 - ]

REMOVE NO. 2 FLOOR UNDER COVER

for AWD

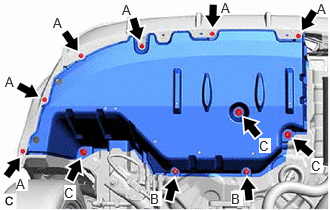

Remove the No. 2 floor under cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 6 clips (A).
Turn the 2 clips (B), 3 clips (C) and remove the No. 2 floor under cover.

NOTE:

If the 5 clips are not turned when the No. 2 floor under cover is removed, the No. 2 floor under cover or stud bolt may be damaged.

HINT:

Do not remove the clips from the No. 2 floor under cover.

SEPARATE REAR STABILIZER BAR SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 2WD

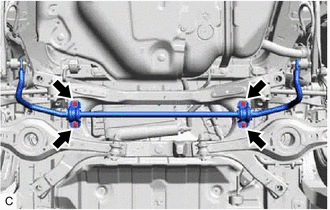

Remove the 4 bolts and separate the rear stabilizer bar sub-assembly from the rear suspension member sub-assembly.

REMOVE CANISTER (CHARCOAL CANISTER ASSEMBLY)

Disconnect the fuel tank vent hose sub-assembly from the leak detection pump sub-assembly.

NOTE:

Remove any dirt or foreign matter on the tube connector before performing this work.
Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe.
Perform this work by hand. Do not use any tools.
Do not forcibly bend, twist or turn the air line tube.
Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.
If the tube connector and pipe are stuck, push and pull to release them.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

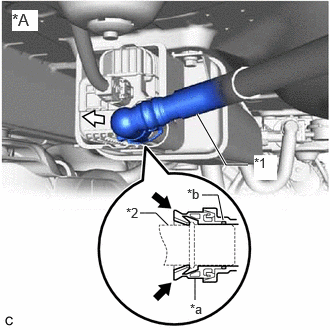

*A	for 2WD
*1	Fuel Tank Vent Hose Sub-assembly
*2	Pipe (Leak Detection Pump Sub-assembly)
*a	Tube Connector
*b	O-ring
	Pinch
	Pull off

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

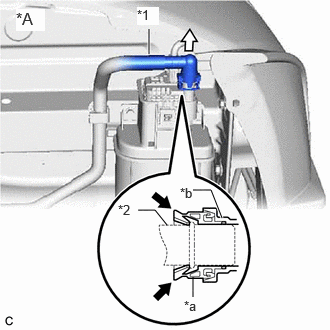

*A	for AWD
*1	Fuel Tank Vent Hose Sub-assembly
*2	Pipe (Leak Detection Pump Sub-assembly)
*a	Tube Connector
*b	O-ring
	Pinch
	Pull off

Push the fuel tank vent hose sub-assembly firmly toward the leak detection pump sub-assembly.
Pinch the tube connector as shown in the illustration.
Pull off the fuel tank vent hose sub-assembly from the pipe (leak detection pump sub-assembly).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 2WD

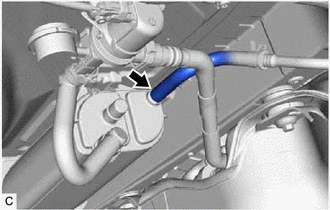

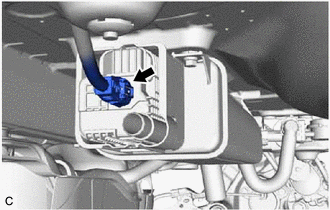

Disconnect the leak detection pump sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for AWD

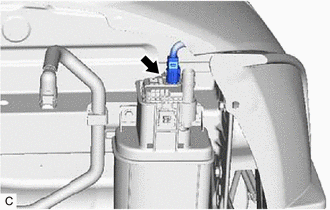

Disconnect the leak detection pump sub-assembly connector.

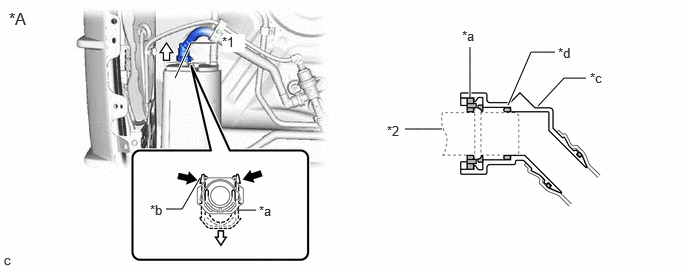

Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD
*1	Fuel Tank Vent Hose	*2	Pipe (Canister (Charcoal Canister Assembly))
*a	Retainer	*b	Tab
*c	Tube Connector	*d	O-ring
	Pinch		Pull

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

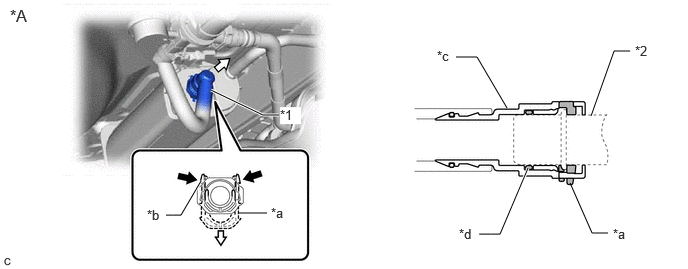

*A	for AWD	-	-
*1	Fuel Tank Vent Hose	*2	Pipe (Canister (Charcoal Canister Assembly))
*a	Retainer	*b	Tab
*c	Tube Connector	*d	O-ring
	Pinch		Pull

NOTE:

Remove any dirt or foreign matter on the tube connector before performing this work.
Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe.
Perform this work by hand. Do not use any tools.
Do not forcibly bend, twist or turn the fuel tank vent hose.
Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose.
If the tube connector and pipe are stuck, push and pull to release them.

HINT:

Do not remove the retainer.

Pinch the tabs of the retainer to disengage the lock claws and pull it down.
Pull off the fuel tank vent hose.

for 2WD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

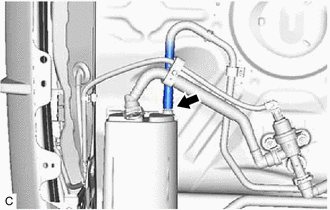

Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).

for AWD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).

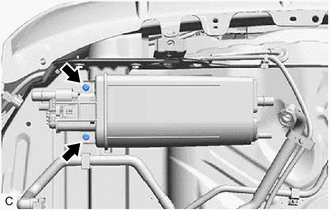

for 2WD

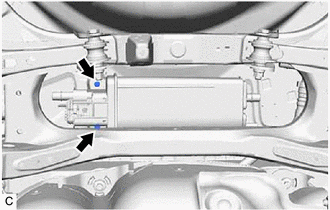

Remove the 2 bolts.

for AWD

Remove the 2 bolts.

for 2WD

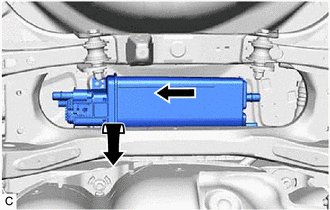

Remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.

for AWD

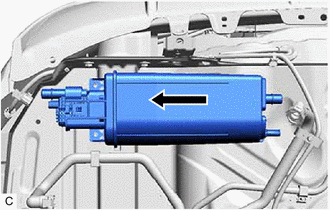

Remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.

REMOVE LEAK DETECTION PUMP SUB-ASSEMBLY

HINT:

Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

Before removing the leak detection pump sub-assembly, clean the charcoal canister sub-assembly by blowing air into it to ensure that the charcoal canister sub-assembly is free of foreign matter.
NOTE:
- Make sure to clean the charcoal canister sub-assembly using air only.
- Do not use gasoline, thinners or solvents.

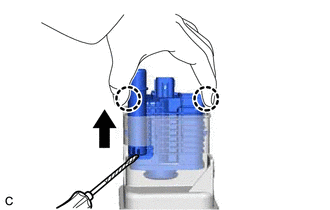

While disengaging the 2 claws as shown in the illustration, push the leak detection pump sub-assembly upwards using a screwdriver with its tip wrapped with protective tape to remove it.

Check if the charcoal canister sub-assembly contains foreign matter such as mud or water.

Visually check that the inside of the charcoal canister sub-assembly is free of foreign matter.

Hold the charcoal canister sub-assembly upside down to make sure that it is free of foreign matter.
If the charcoal canister sub-assembly contains foreign matter, replace the canister (charcoal canister assembly).
