Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (1 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | COMPRESSION SPRING |
| *3 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

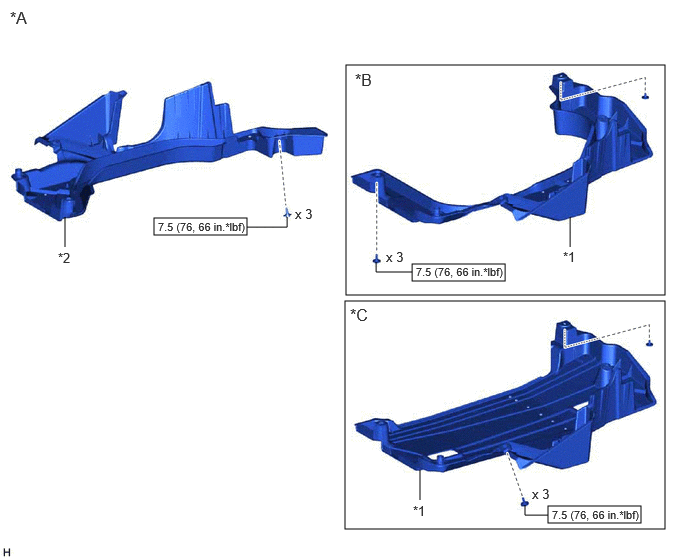

Fig 2: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (2 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for Type A |
| *C | for Type B | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

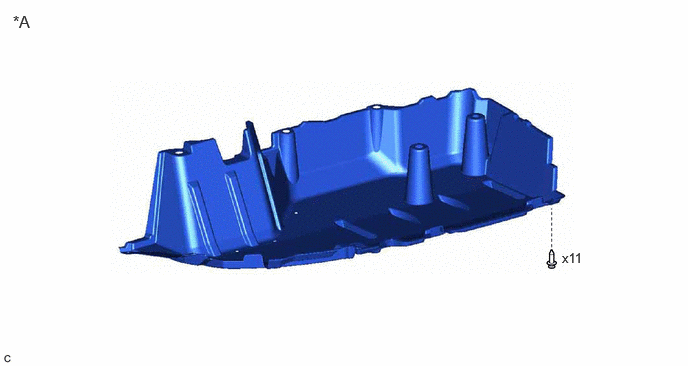

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | NO. 2 FLOOR UNDER COVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 4: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (4 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | REAR STABILIZER BAR SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

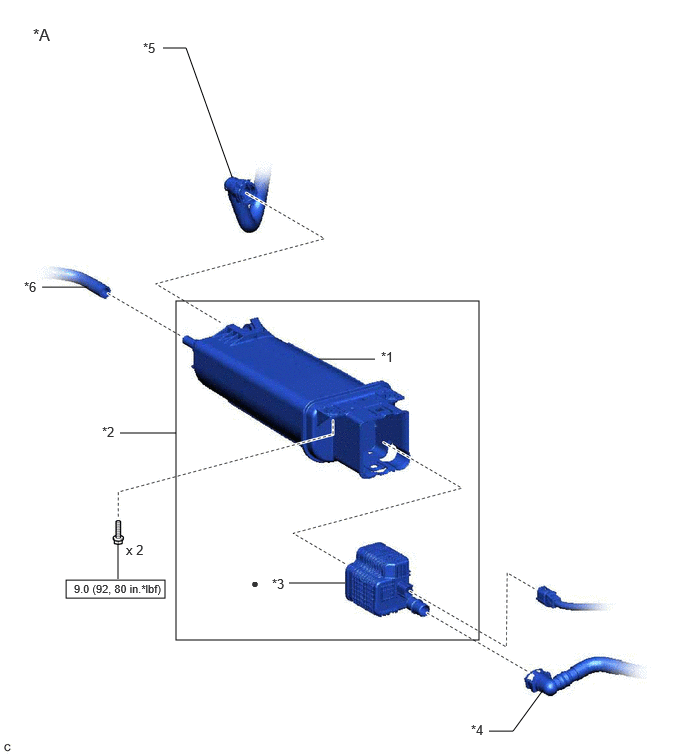

Fig 5: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (5 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | CHARCOAL CANISTER SUB-ASSEMBLY | *2 | CANISTER (CHARCOAL CANISTER ASSEMBLY) |
| *3 | LEAK DETECTION PUMP SUB-ASSEMBLY | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | FUEL TANK VENT HOSE | *6 | PURGE LINE HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

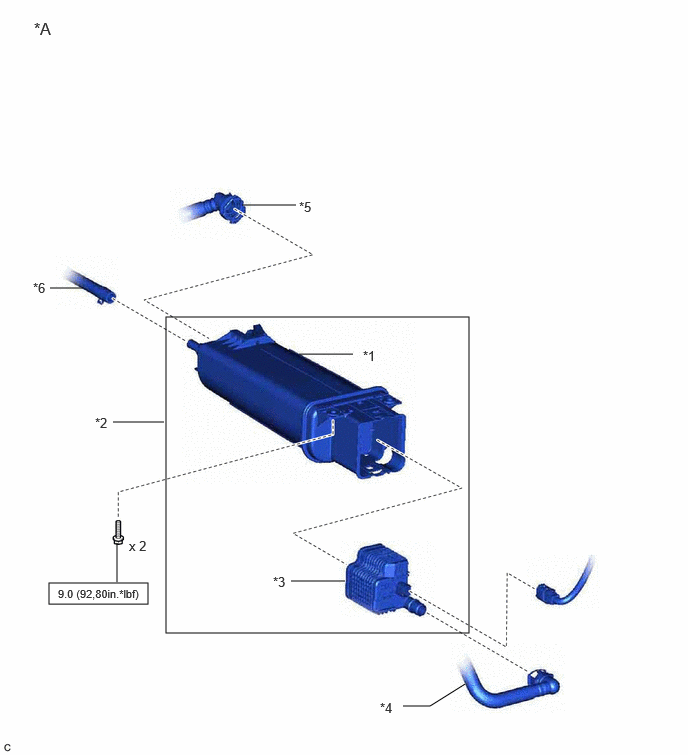

Fig 6: Canister (W/ Canister Pump Module) Replacement Components With Torque Specifications [09/2022 - ] (6 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | CHARCOAL CANISTER SUB-ASSEMBLY | *2 | CANISTER (CHARCOAL CANISTER ASSEMBLY) |
| *3 | LEAK DETECTION PUMP SUB-ASSEMBLY | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | FUEL TANK VENT HOSE | *6 | PURGE LINE HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
