On-Vehicle Inspection [09/2022 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
- Remove the front disc brake cylinder bleeder plug and set a pedal effort gauge and SST.
- SST: 09709-29018
- 09709-00060

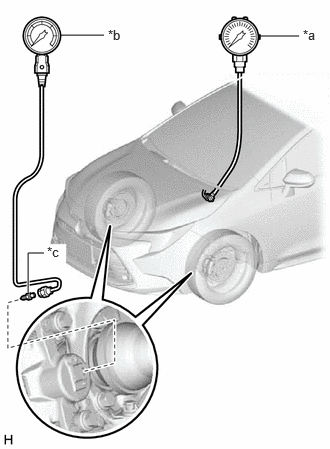

*a Pedal Effort Gauge *b SST (LSPV Gauge) *c SST (No. 1 Nipple) - SST: 09709-29018
- Bleed air from SST (LSPV gauge).
Refer to BLEEDING [09/2022 - ]
- Shift lever in P and the parking brake applied.
- Turn the ignition switch to ON (READY), check the hydraulic pressure by depressing the brake pedal.
Standard Result
Pedal Effort Hydraulic Pressure 50 N (5 kgf, 11.2 lbf) 2.1 MPa (21.4 kgf/cm2 , 305 psi) 100 N (10 kgf, 22.5 lbf) 5.3 MPa (54.0 kgf/cm2 , 769 psi) 150 N (15 kgf, 33.7 lbf) 8.5 MPa (86.7 kgf/cm2 , 1233 psi) 200 N (20 kgf, 45.0 lbf) 11.6 MPa (118.3 kgf/cm2 , 1682 psi) - Remove the pedal effort gauge and SST, and bleed the brake line.
Refer to BLEEDING [09/2022 - ]
