Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Engine Assembly Replacement Components [09/2022 - ] (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR ENGINE UNDER COVER RH	*2	REAR ENGINE UNDER COVER LH
*a	Type A: x 4 Type B: x 5	-	-

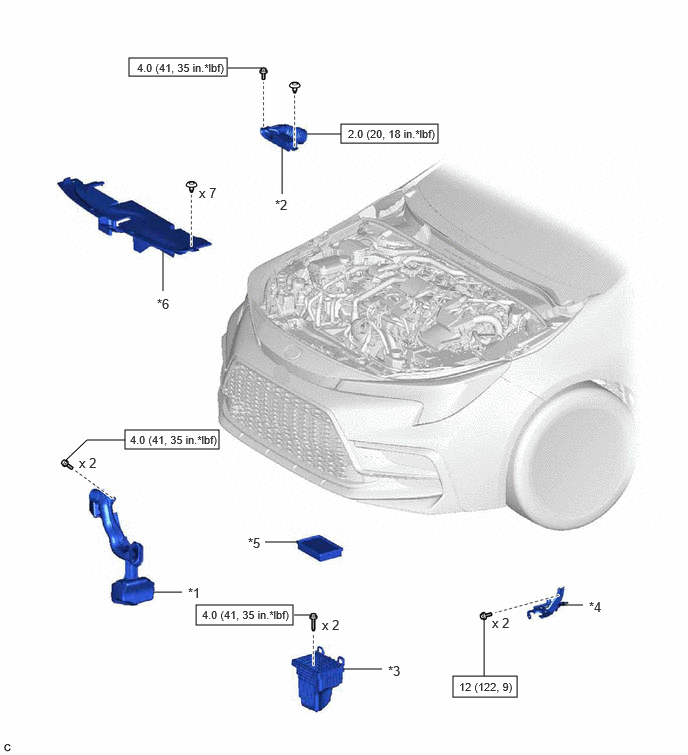

Fig 3: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INLET NO. 1 AIR CLEANER	*2	INLET NO. 2 AIR CLEANER
*3	AIR CLEANER CASE SUB-ASSEMBLY	*4	AIR CLEANER SUPPORT BRACKET ASSEMBLY
*5	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	*6	RADIATOR SUPPORT OPENING COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

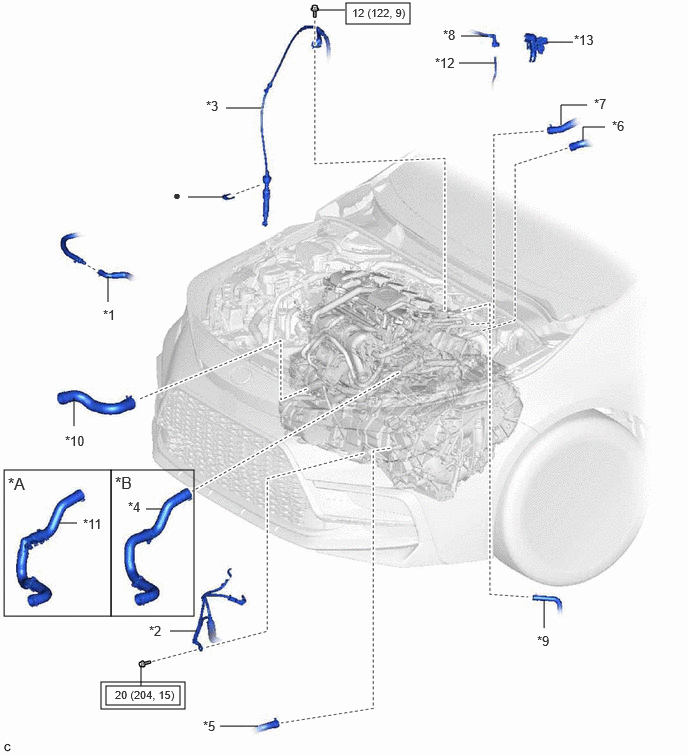

Fig 4: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	NO. 8 WATER BY-PASS HOSE	*2	NO. 7 ENGINE WIRE
*3	FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE	*4	NO. 1 RADIATOR HOSE
*5	NO. 2 INVERTER COOLING OUTLET HOSE	*6	OUTLET HEATER WATER HOSE
*7	INLET HEATER WATER HOSE	*8	FUEL TUBE SUB-ASSEMBLY
*9	FUEL VAPOR FEED HOSE	*10	NO. 2 RADIATOR HOSE
*11	NO. 3 RADIATOR HOSE	*12	FUEL PIPE
*13	EFI FUEL PIPE CLAMP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

Fig 5: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 6: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	FRONT FLOOR CENTER BRACE
*3	COMPRESSION SPRING	*4	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Precoated part

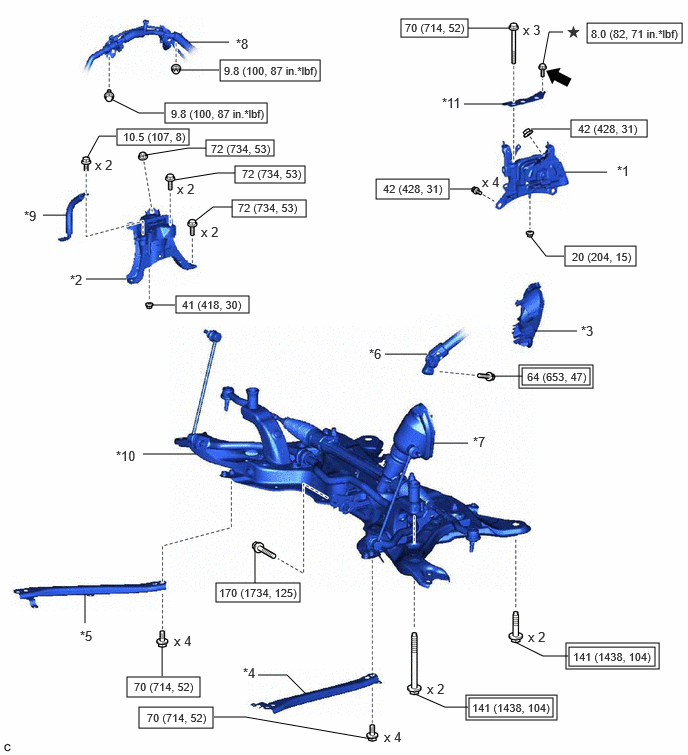

Fig 7: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (7 Of 9)

Callout	Description	Callout	Description
*1	ENGINE MOUNTING INSULATOR LH	*2	ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3	COLUMN HOLE COVER SILENCER SHEET	*4	REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH
*5	REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH	*6	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*7	NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY	*8	AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
*9	NO. 2 EARTH WIRE	*10	FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
*11	NO. 2 ENGINE MOUNTING STAY LH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
	Adhesive 1324	*	Precoated part

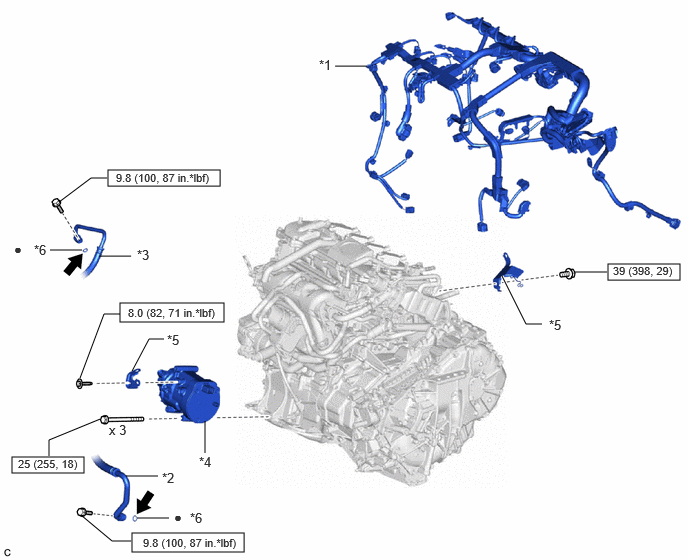

Fig 8: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (8 Of 9)

Callout	Description	Callout	Description
*1	ENGINE WIRE	*2	SUCTION HOSE SUB-ASSEMBLY
*3	DISCHARGE HOSE SUB-ASSEMBLY	*4	COMPRESSOR WITH MOTOR ASSEMBLY
*5	WIRE HARNESS CLAMP BRACKET	*6	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

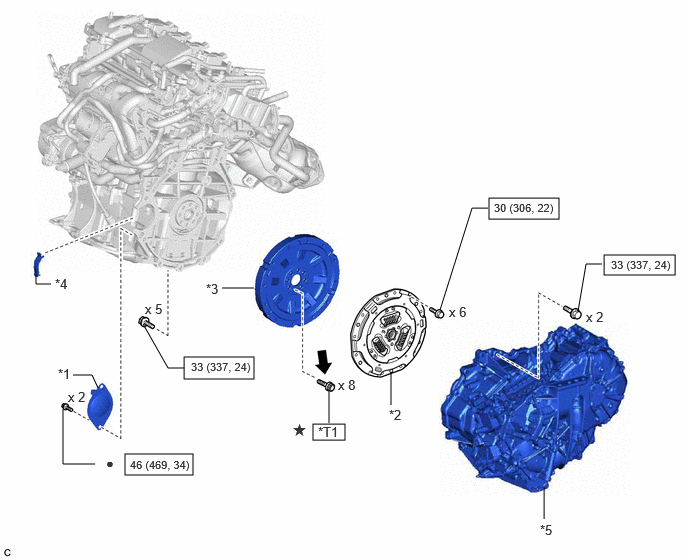

Fig 9: Engine Assembly Replacement Components With Torque Specifications [09/2022 - ] (9 Of 9)

Callout	Description	Callout	Description
*1	STARTER HOLE INSULATOR	*2	TRANSMISSION INPUT DAMPER ASSEMBLY
*3	FLYWHEEL SUB-ASSEMBLY	*4	FLYWHEEL HOUSING SIDE COVER
*5	HYBRID VEHICLE TRANSAXLE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
*T1	1st: 49 (500, 36) 2nd: Turn 90°	-	-
