Components [04/2020 - 09/2022]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (1 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER RH | *2 | REAR ENGINE UNDER COVER LH |
| *a | Type A: x 4 Type B: x 5 |
- | - |
Fig 3: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (3 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INLET NO. 1 AIR CLEANER | *2 | INLET NO. 2 AIR CLEANER |
| *3 | AIR CLEANER CASE SUB-ASSEMBLY | *4 | AIR CLEANER BRACKET |
| *5 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *6 | RADIATOR SUPPORT OPENING COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

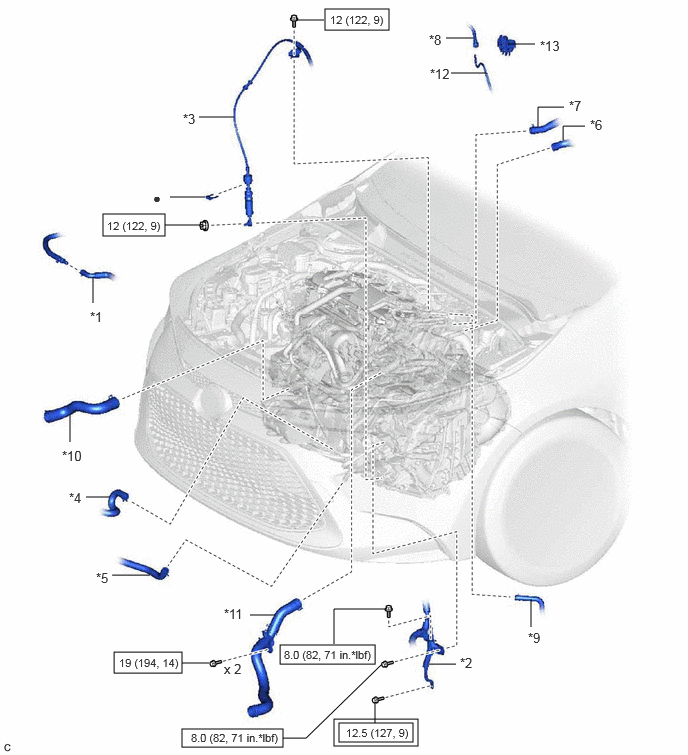

Fig 4: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (4 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 8 WATER BY-PASS HOSE | *2 | NO. 3 ENGINE WIRE |
| *3 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE | *4 | OUTLET NO. 1 HYBRID WATER PUMP HOSE |
| *5 | INLET HYBRID RADIATOR HOSE | *6 | OUTLET HEATER WATER HOSE |
| *7 | INLET HEATER WATER HOSE | *8 | FUEL TUBE SUB-ASSEMBLY |
| *9 | FUEL VAPOR FEED HOSE | *10 | NO. 2 RADIATOR HOSE |
| *11 | NO. 3 RADIATOR HOSE | *12 | FUEL PIPE |
| *13 | EFI FUEL PIPE CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
Fig 5: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (5 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 6: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (6 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | FRONT FLOOR CENTER BRACE |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Precoated part |
Fig 7: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (7 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE MOUNTING INSULATOR LH | *2 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
| *3 | COLUMN HOLE COVER SILENCER SHEET | *4 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH |
| *5 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH | *6 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *7 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY | *8 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *9 | NO. 2 EARTH WIRE | *10 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| *11 | NO. 2 ENGINE MOUNTING STAY LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| Adhesive 1324 | * | Precoated part |
Fig 8: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (8 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WIRE | *2 | SUCTION HOSE SUB-ASSEMBLY |
| *3 | DISCHARGE HOSE SUB-ASSEMBLY | *4 | COMPRESSOR WITH MOTOR ASSEMBLY |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Compressor oil ND-OIL 11 or equivalent | - | - |
Fig 9: Engine Assembly Replacement Components With Torque Specifications [04/2020 - 09/2022] (9 Of 9)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | STARTER HOLE INSULATOR | *2 | TRANSMISSION INPUT DAMPER ASSEMBLY |
| *3 | FLYWHEEL SUB-ASSEMBLY | *4 | FLYWHEEL HOUSING SIDE COVER |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part | |
| *T1 | 1st: 49 (500, 36) 2nd: Turn 90° |
- | - |
