Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.

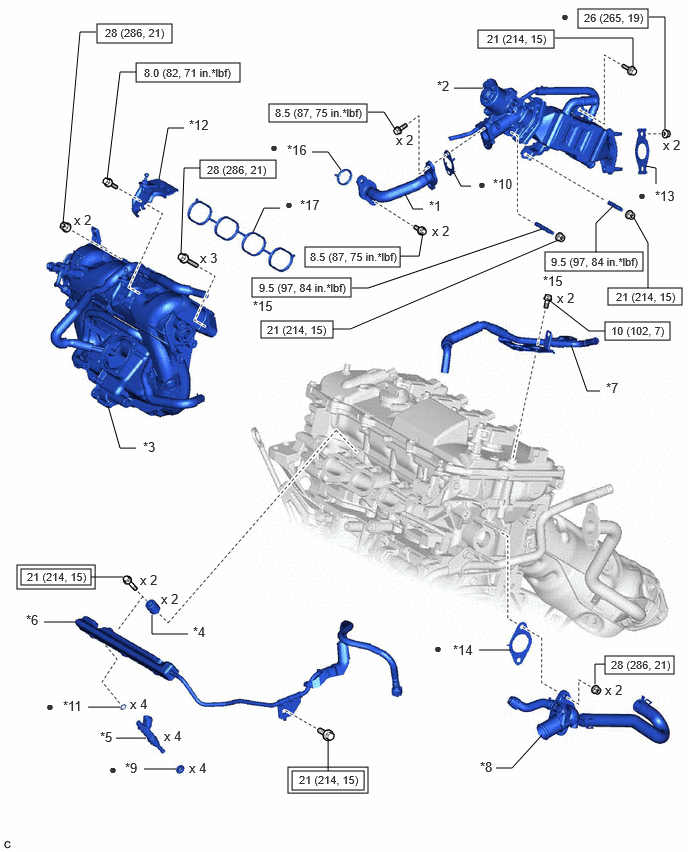

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
EGR PIPE ASSEMBLY |
*2 |
EGR VALVE ASSEMBLY WITH EGR COOLER |
| *3 |
INTAKE MANIFOLD |
*4 |
NO. 1 DELIVERY PIPE SPACER |
| *5 |
FUEL INJECTOR ASSEMBLY |
*6 |
FUEL DELIVERY PIPE SUB-ASSEMBLY |
| *7 |
FUEL VAPOR FEED PIPE |
*8 |
WATER OUTLET |
| *9 |
INJECTOR VIBRATION INSULATOR |
*10 |
EGR PIPE GASKET |
| *11 |
O-RING |
*12 |
ENGINE COVER BRACKET |
| *13 |
EGR COOLER GASKET |
*14 |
WATER OUTLET GASKET |
| *15 |
STUD BOLT |
*16 |
INLET EGR GASKET |
| *17 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |

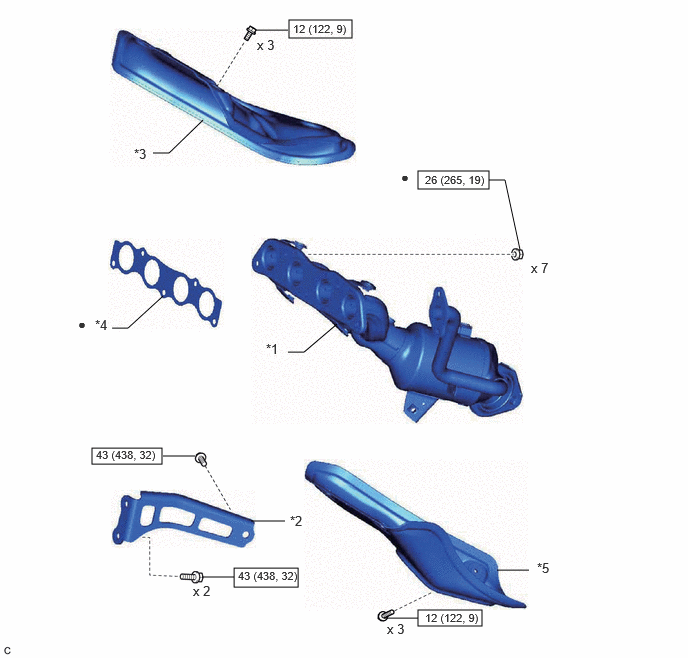

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
EXHAUST MANIFOLD (TWC: Front Catalyst) |
*2 |
MANIFOLD STAY |
| *3 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*4 |
EXHAUST MANIFOLD TO HEAT GASKET |
| *5 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

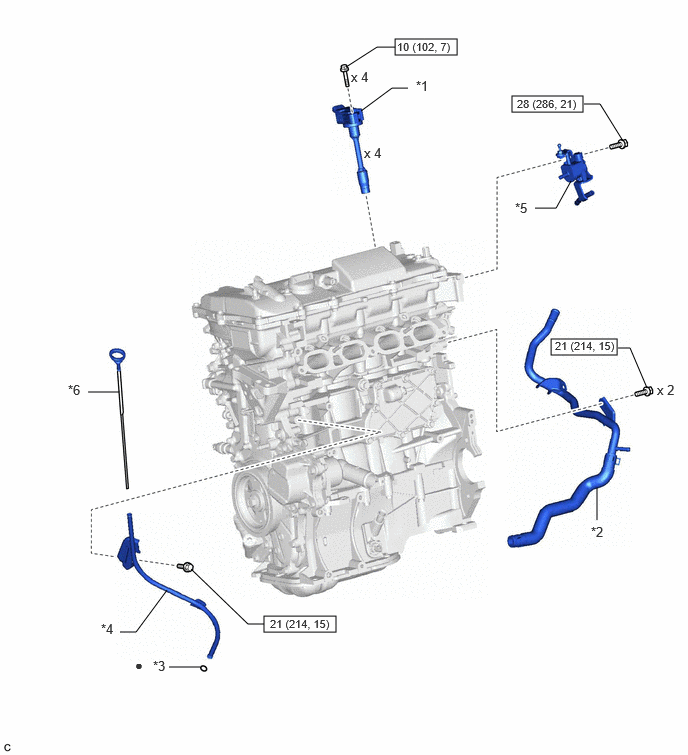

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
WATER BY-PASS PIPE |
| *3 |
O-RING |
*4 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
| *5 |
PURGE VALVE (PURGE VSV) |
*6 |
ENGINE OIL LEVEL DIPSTICK |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

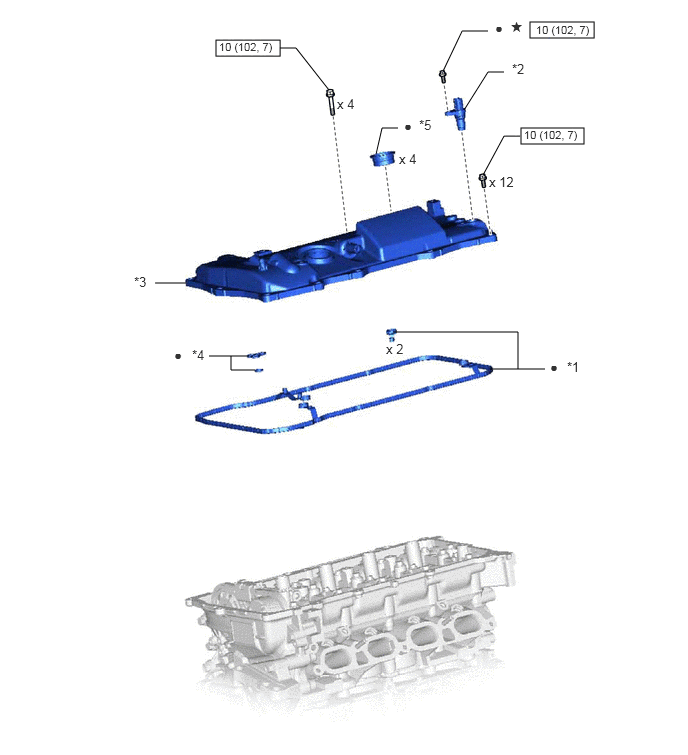

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD COVER GASKET |
*2 |
CAMSHAFT POSITION SENSOR |
| *3 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*4 |
GASKET |
| *5 |
SPARK PLUG TUBE GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |

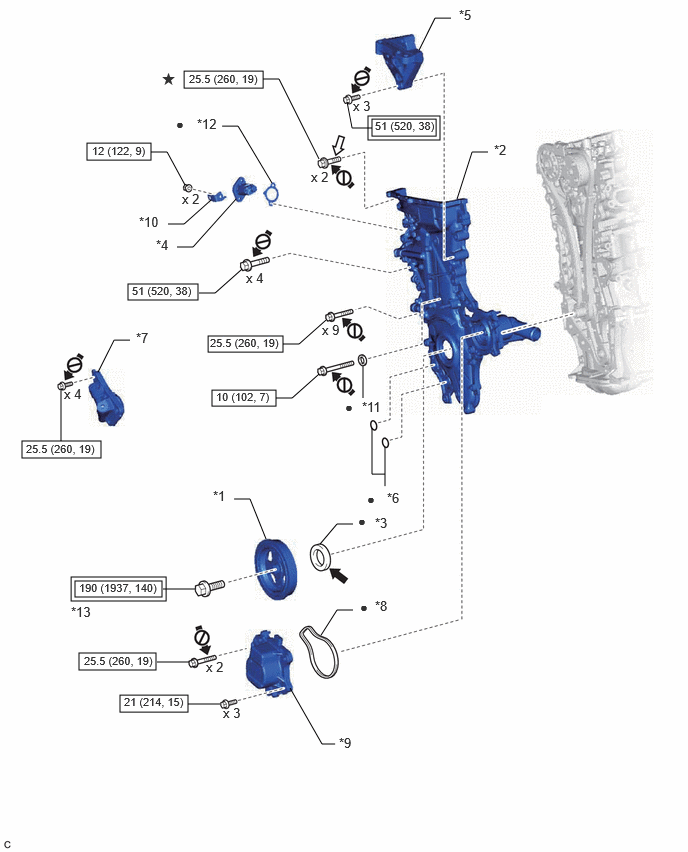

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CRANKSHAFT PULLEY |
*2 |
TIMING CHAIN COVER SUB-ASSEMBLY |
| *3 |
TIMING CHAIN COVER OIL SEAL |
*4 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *5 |
ENGINE MOUNTING BRACKET RH |
*6 |
OIL FILTER BRACKET O-RING |
| *7 |
OIL FILTER BRACKET |
*8 |
WATER PUMP GASKET |
| *9 |
ENGINE WATER PUMP ASSEMBLY |
*10 |
BRACKET |
| *11 |
SEAL WASHER |
*12 |
GASKET |
| *13 |
CRANKSHAFT PULLEY SET BOLT |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
|
MP grease |
|
Adhesive 1324 |
* |
Precoated part |
|
Do not apply lubricants to the threaded parts |
- |
- |

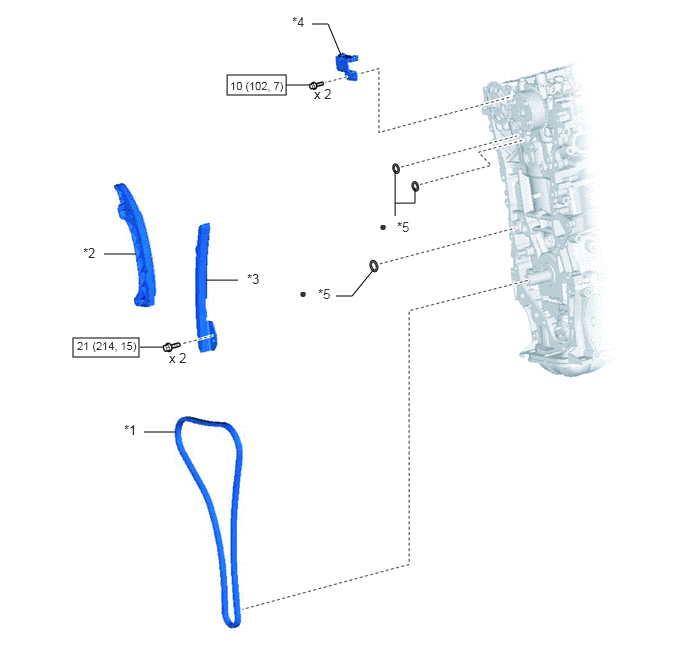

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CHAIN SUB-ASSEMBLY |
*2 |
CHAIN TENSIONER SLIPPER |
| *3 |
NO. 1 CHAIN VIBRATION DAMPER |
*4 |
NO. 2 CHAIN VIBRATION DAMPER |
| *5 |
O-RING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

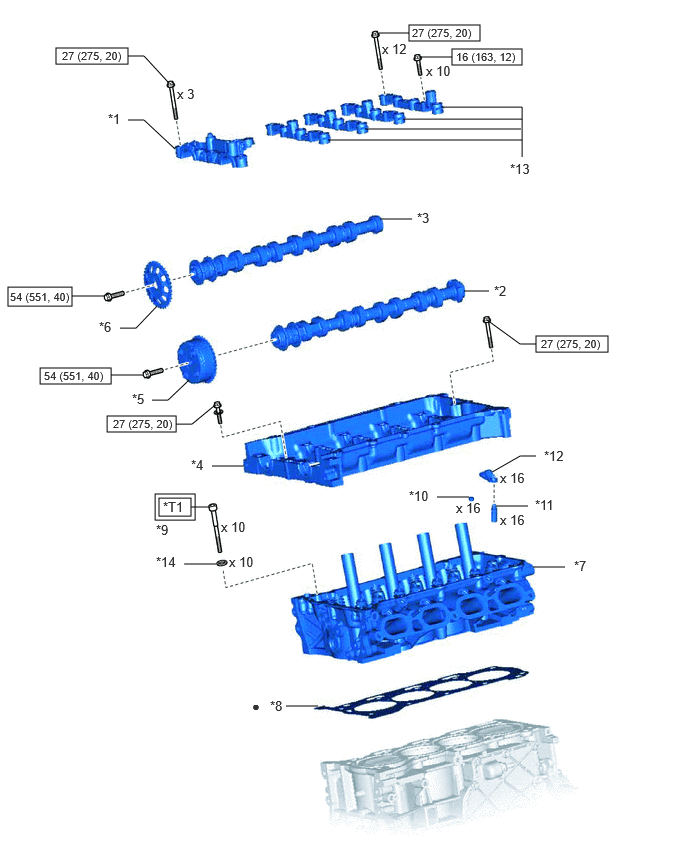

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 CAMSHAFT BEARING CAP |
*2 |
CAMSHAFT |
| *3 |
NO. 2 CAMSHAFT |
*4 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*6 |
CAMSHAFT TIMING SPROCKET |
| *7 |
CYLINDER HEAD SUB-ASSEMBLY |
*8 |
CYLINDER HEAD GASKET |
| *9 |
CYLINDER HEAD SET BOLT |
*10 |
VALVE STEM CAP |
| *11 |
VALVE LASH ADJUSTER ASSEMBLY |
*12 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *13 |
NO. 2 CAMSHAFT BEARING CAP |
*14 |
CYLINDER HEAD SET PLATE WASHER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
| *T1 |
1st: 49 (500, 36)
2nd: Turn 90°
3rd: Turn 45° |
- |
- |
