Section 23 (Engine Control System (2ZR-FXE) - Circuit Tests (2 Of 2) & Symptom Tests)
>>
SFI System
>>
Ignition Circuit [09/2022 - ]
>>
Wiring Diagram

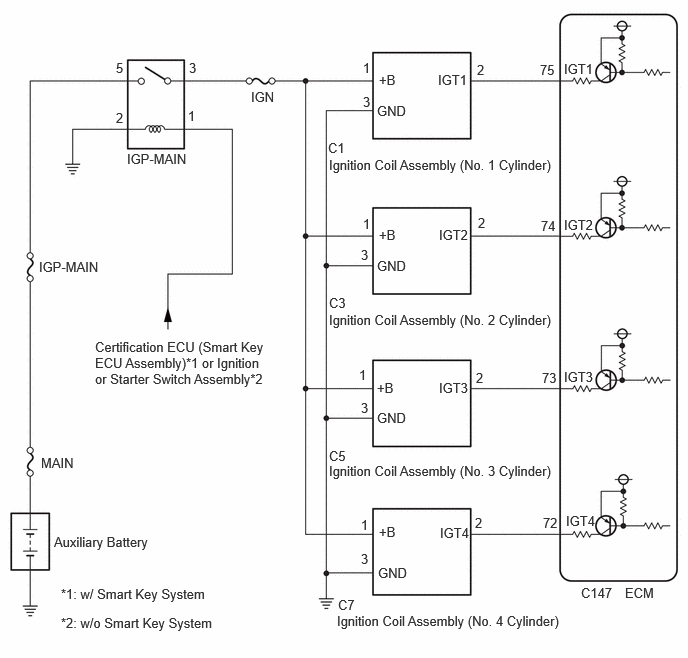

Ignition Circuit [09/2022 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
