Section 1 (Electric Parking Brake System (HEV) - Diagnostics - Introduction)
>>
ELECTRIC PARKING BRAKE SYSTEM (for HV Model)
>>

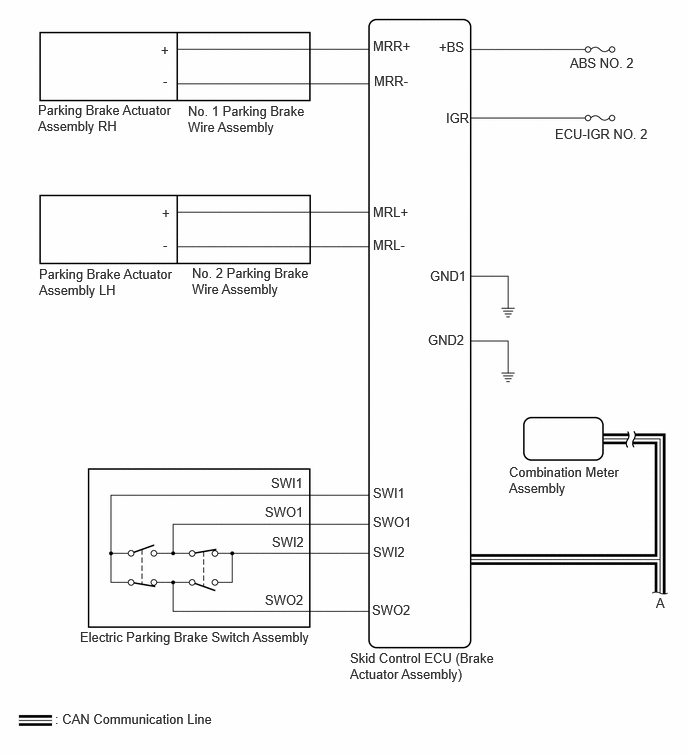

System Diagram [09/2022 - ]
>>

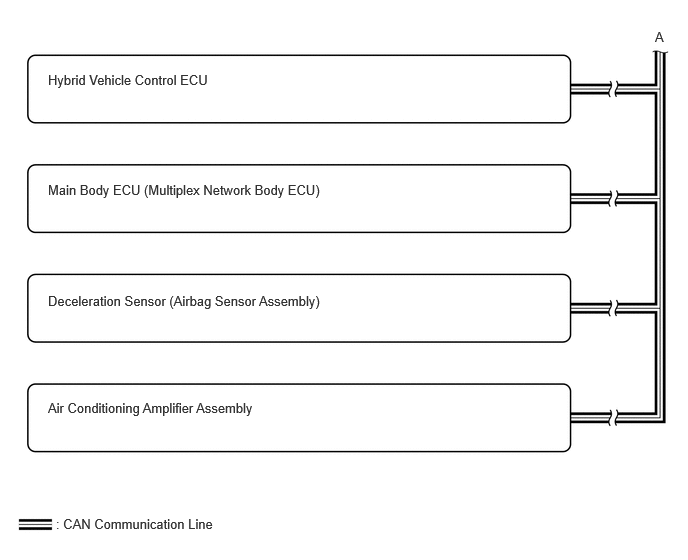

System Diagram [09/2022 - ]
System Diagram [09/2022 - ]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
