Components [03/2019 - 11/2022]

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 10)
GTY862555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stud Bolt *B w/o Stud Bolt
*C w/ Canister Pump Module *D w/o Canister Pump Module
*1 FUEL DELIVERY PIPE SUB-ASSEMBLY *2 FUEL INJECTOR ASSEMBLY
*3 FUEL TUBE SUB-ASSEMBLY *4 INTAKE MANIFOLD
*5 NO. 1 DELIVERY PIPE SPACER *6 PURGE VALVE (PURGE VSV)
*7 THROTTLE BODY ASSEMBLY *8 INTAKE MANIFOLD STAY
*9 GASKET *10 NO. 2 FUEL PIPE CLAMP
*11 O-RING *12 INJECTOR VIBRATION INSULATOR
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Do not apply lubricants to the threaded parts
Fig 2: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 10)
GTY871942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 EXHAUST MANIFOLD *2 MANIFOLD STAY
*3 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR *4 DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY
*5 EXHAUST MANIFOLD TO HEAD GASKET - -
*a 18 mm (0.709 in.) *b 17 mm (0.669 in.)
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

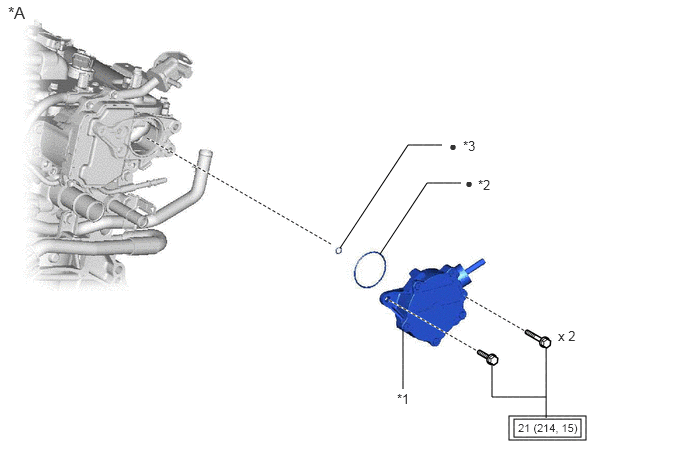

Fig 3: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (3 Of 10)
GTY862446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for TMC Made - -
*1 VACUUM PUMP ASSEMBLY *2 NO. 2 O-RING
*3 NO. 3 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part

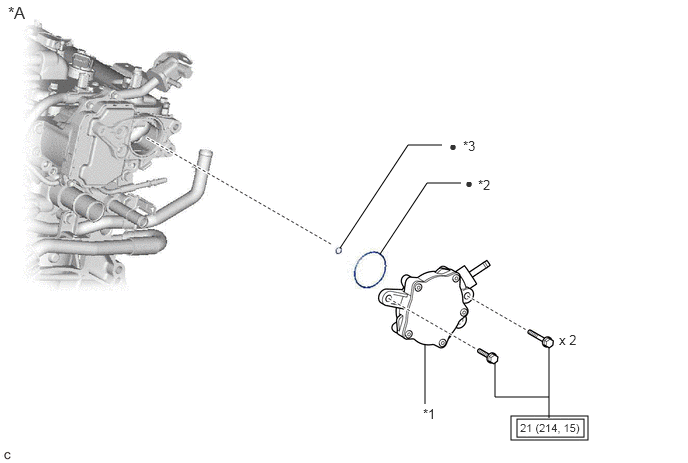

Fig 4: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (4 Of 10)
GTY905668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for TMMMS Made - -
*1 VACUUM PUMP ASSEMBLY *2 NO. 2 O-RING
*3 NO. 1 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
Fig 5: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (5 Of 10)
GTY867133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 IGNITION COIL ASSEMBLY
*3 NO. 1 VACUUM PUMP BRACKET *4 NO. 3 WATER BY-PASS HOSE
*5 PCV HOSE *6 V-RIBBED BELT TENSIONER ASSEMBLY
*7 WATER BY-PASS HOSE *8 WATER INLET HOSE
*9 ENGINE OIL LEVEL DIPSTICK *10 O-RING
*11 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 6: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (6 Of 10)
GTY858734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER HEAD COVER GASKET *2 CYLINDER HEAD COVER SUB-ASSEMBLY
*3 GASKET *4 SEAL WASHER
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 7: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (7 Of 10)
GTY853724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY *2 NO. 1 CHAIN TENSIONER ASSEMBLY
*3 CRANKSHAFT PULLEY SET BOLT *4 OIL FILTER BRACKET
*5 TIMING CHAIN COVER OIL SEAL *6 TIMING CHAIN COVER SUB-ASSEMBLY
*7 GASKET *8 O-RING
*9 ENGINE WATER PUMP ASSEMBLY *10 SEAL WASHER
*11 ENGINE MOUNTING BRACKET RH *12 BRACKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part MP grease
* Precoated part Do not apply lubricants to the threaded parts
Fig 8: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (8 Of 10)
GTY863916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 CRANKSHAFT TIMING SPROCKET *4 NO. 1 CHAIN VIBRATION DAMPER
*5 NO. 2 CHAIN SUB-ASSEMBLY *6 OIL PUMP DRIVE GEAR
*7 OIL PUMP DRIVE SHAFT GEAR *8 CHAIN DAMPER SPRING
*9 CHAIN TENSIONER PLATE *10 O-RING
*11 OIL PUMP DRIVE SHAFT GEAR NUT - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 9: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (9 Of 10)
GTY864804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 OIL PAN SUB-ASSEMBLY *2 OIL PUMP ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 10: Oil Pump Replacement Components With Torque Specifications [03/2019 - 11/2022] (10 Of 10)
GTY440075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PUMP RELIEF VALVE SPRING *2 OIL PUMP RELIEF VALVE
*3 OIL PUMP RELIEF VALVE PLUG *4 OIL PUMP BODY
*5 OIL PUMP DRIVEN ROTOR *6 OIL PUMP COVER SUB-ASSEMBLY
*7 OIL PUMP DRIVE ROTOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
