Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

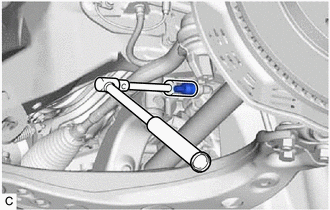

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY932882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
