Parts Location [01/2019 - 09/2022]: Illustration
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, and 2020 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

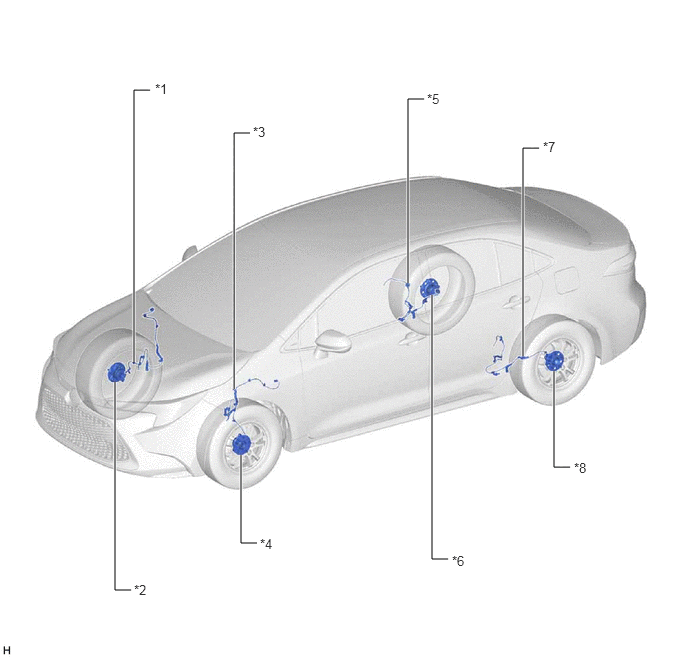

| *1 | FRONT SPEED SENSOR RH | *2 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
| *3 | FRONT SPEED SENSOR LH | *4 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *5 | SKID CONTROL SENSOR WIRE RH | *6 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
| *7 | SKID CONTROL SENSOR WIRE LH | *8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |

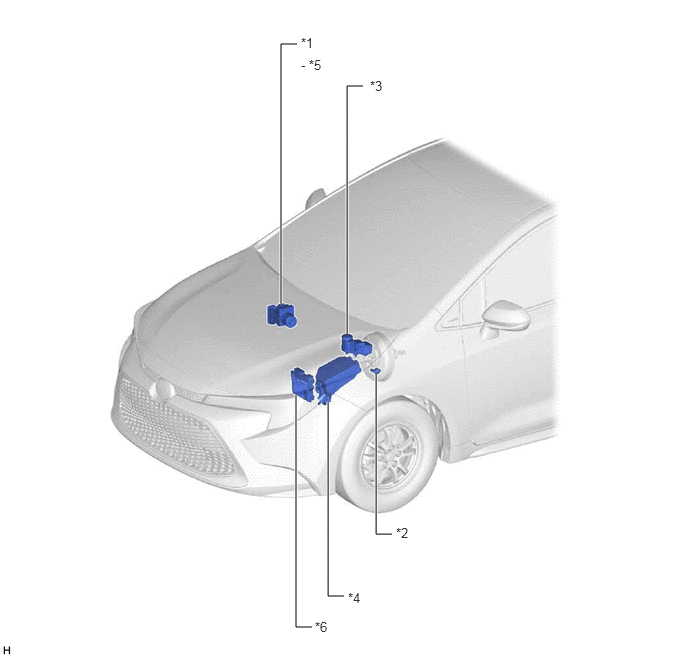

| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS MTR NO. 1 FUSE - ABS-MAIN FUSE |
| *5 | SKID CONTROL ECU | *6 | ECM |
| *A | w/ Smart Key System | - | - |

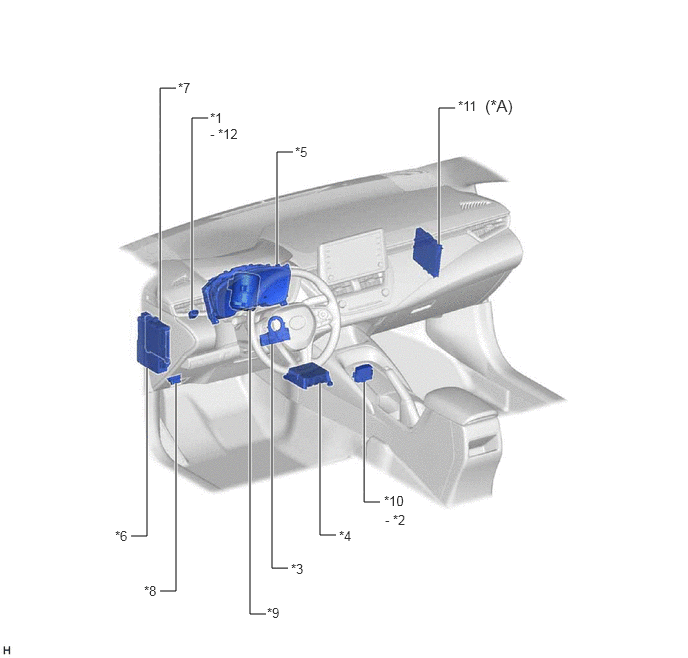

| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | VSC OFF SWITCH |
| *3 | STEERING ANGLE SENSOR | *4 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *5 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) |
*6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IG2 FUSE - STOP FUSE |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | DLC3 |
| *9 | POWER STEERING ECU WITH MOTOR ASSEMBLY | *10 | COMBINATION SWITCH ASSEMBLY |
| *11 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *12 | STOP LIGHT CONTROL RELAY |
