DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [06/2018 - 01/2019]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT LIGHTS
    1. Inspect the illumination of each turn signal light.

      Result

      Result Proceed to
      Front turn signal light LH does not blink A
      Rear turn signal light LH does not blink B
      Front turn signal light RH does not blink C
      Rear turn signal light RH does not blink D

    Result:

    B

    See step  9

    Result:

    C

    See step  12

    Result:

    D

    See step  19

    Result:

    A

    See step  2

  2. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      w/ AFS A
      w/o AFS B

    Result:

    B

    See step  7

    Result:

    A

    See step  3

  3. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A21 and A23 headlight assembly LH connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-1 (TNS) - I5-1 (LL) Always Below 1 Ω
      A23-4 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. INSPECT HEADLIGHT CORD (HEADLIGHT UNIT ASSEMBLY LH)
    GTY900456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Headlight Cord (Headlight Unit Assembly LH) - -
    *a Component without harness connected
    (Headlight ECU Sub-assembly LH)    		 *b Component without harness connected
    (to Wire Harness)
    1. Remove the headlight unit assembly LH.

      Refer to DISASSEMBLY [06/2018 - 01/2019]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-11 (ECUB) - A21-1 (TNS) Always Below 1 Ω
      A-12 (GND) - A23-4 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 01/2019]

    Result:

    OK

    See step  5

  5. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH

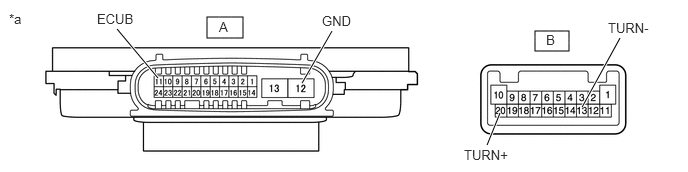

    GTY870803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-20 (TURN+) - A-11 (ECUB) Always Below 1 Ω
      B-13 (TURN-) - A-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    OK

    See step  6

  6. INSPECT TURN SIGNAL LIGHT (HEADLIGHT UNIT ASSEMBLY LH)
    1. Inspect the turn signal light (headlight unit assembly LH).

      Refer to INSPECTION [06/2018 - 01/2019]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 01/2019]

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A83 headlight assembly LH connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A83-2 (B) - I5-1 (LL) Always Below 1 Ω
      A83-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY LH)
    1. Connect the I5 combination meter assembly connector.
    2. Interchange the headlight assembly LH with RH and connect the connectors.

      Refer to REMOVAL [06/2018 - 01/2019]

    3. Operate the turn signal switch and check that the LH side front turn signal light operates normally.

      OK

      LH side front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 01/2019]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]

  9. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the O43 rear combination light assembly LH connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O43-4 (B) - I5-5 (TRNL) Always Below 1 Ω
      O43-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK LH SIDE REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY LH)
    1. Connect the I5 combination meter assembly connector.
    2. Interchange the rear combination light assembly LH with RH and connect the connectors.

      Refer to REMOVAL [06/2018 - 09/2022]

    3. Operate the turn signal switch and check that the LH side rear turn signal light operates normally.

      OK

      LH side rear turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]

    Result:

    OK

    See step  11

  11. INSPECT REAR COMBINATION LIGHT LED LH
    1. Remove the rear combination light LED LH from rear combination light assembly LH.

      Refer to DISASSEMBLY [06/2018 - ]

    2. Inspect the rear combination light LED LH.

      Refer to INSPECTION [06/2018 - 09/2022]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR COMBINATION LIGHT CORD LH. Refer to  DISASSEMBLY [06/2018 - ]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT LED LH. Refer to  DISASSEMBLY [06/2018 - ]

  12. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      w/ AFS A
      w/o AFS B

    Result:

    B

    See step  17

    Result:

    A

    See step  13

  13. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A20 and A22 headlight assembly RH connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A20-1 (TNS) - I5-2 (LR) Always Below 1 Ω
      A22-4 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  14

  14. INSPECT HEADLIGHT CORD (HEADLIGHT UNIT ASSEMBLY RH)

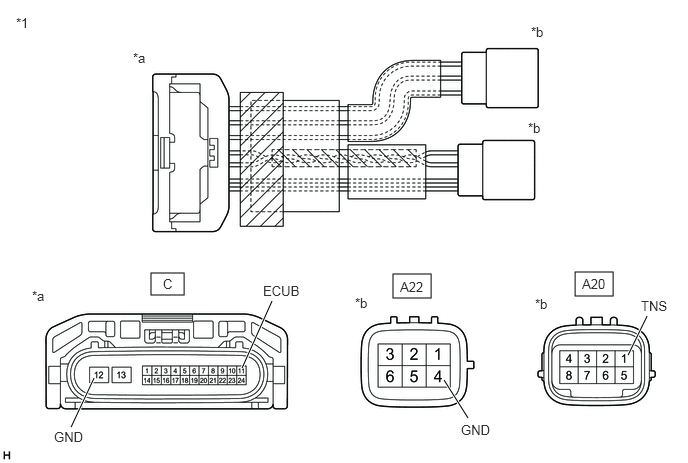

    GTY900458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Headlight Cord (Headlight Unit Assembly RH) - -
    *a Component without harness connected
    (Headlight ECU Sub-assembly RH)    		 *b Component without harness connected
    (to Wire Harness)
    1. Remove the headlight unit assembly RH.

      Refer to DISASSEMBLY [06/2018 - 01/2019]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C-11 (ECUB) - A20-1 (TNS) Always Below 1 Ω
      C-12 (GND) - A22-4 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]

    Result:

    OK

    See step  15

  15. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH

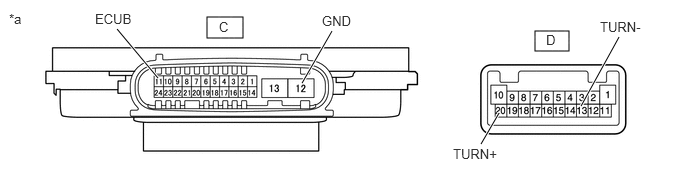

    GTY870802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D-20 (TURN+) - C-11 (ECUB) Always Below 1 Ω
      D-13 (TURN-) - C-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    OK

    See step  16

  16. INSPECT TURN SIGNAL LIGHT (HEADLIGHT UNIT ASSEMBLY RH)
    1. Inspect the turn signal light (headlight unit assembly RH).

      Refer to INSPECTION [06/2018 - 01/2019]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]

  17. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A82 headlight assembly RH connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A82-2 (B) - I5-2 (LR) Always Below 1 Ω
      A82-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  18

  18. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY RH)
    1. Connect the I5 combination meter assembly connector.
    2. Interchange the headlight assembly RH with LH and connect the connectors.

      Refer to REMOVAL [06/2018 - 01/2019]

    3. Operate the turn signal switch and check that the RH side front turn signal light operates normally.

      OK

      RH side front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 01/2019]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]

  19. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the O42 rear combination light assembly RH connector.
    2. Disconnect the I5 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O42-4 (B) - I5-6 (TRNR) Always Below 1 Ω
      O42-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  20

  20. CHECK RH SIDE REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY RH)
    1. Connect the I5 combination meter assembly connector.
    2. Interchange the rear combination light assembly RH with LH and connect the connectors.

      Refer to REMOVAL [06/2018 - 09/2022]

    3. Operate the turn signal switch and check that the RH side rear turn signal light operates normally.

      OK

      RH side rear turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 01/2019]

    Result:

    OK

    See step  21

  21. INSPECT REAR COMBINATION LIGHT LED RH
    1. Remove the rear combination light LED RH from rear combination light assembly RH.

      Refer to DISASSEMBLY [06/2018 - ]

    2. Inspect the rear combination light LED RH.

      Refer to INSPECTION [06/2018 - 09/2022]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR COMBINATION LIGHT CORD RH. Refer to  DISASSEMBLY [06/2018 - ]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT LED RH. Refer to  DISASSEMBLY [06/2018 - ]
