DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [03/2019 - 09/2022]: Wiring Diagram

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. FOR TMC MADE
    GTY925153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY902514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY925163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY940357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FOR TMMMS MADE
    GTY850491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

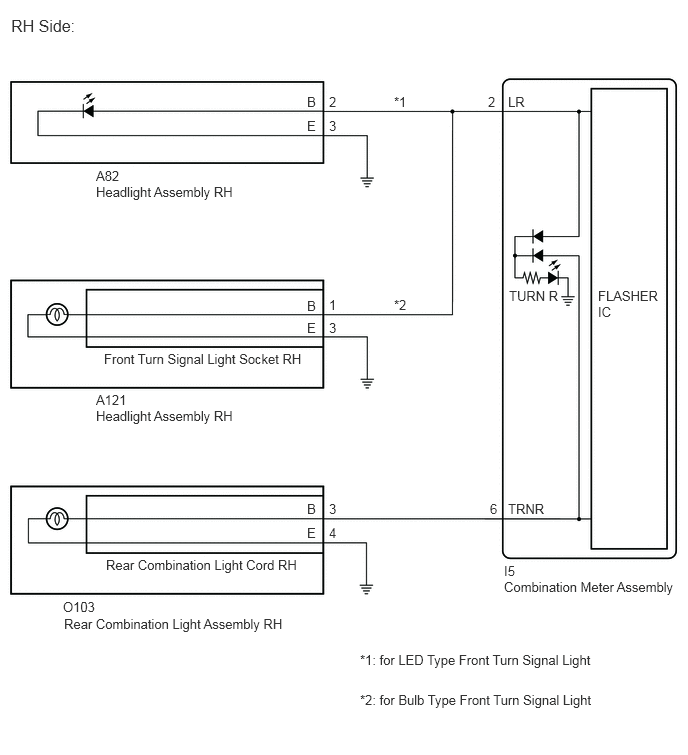

    GTY850492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
