Parts Location [09/2022 - 11/2022]: Illustration
WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

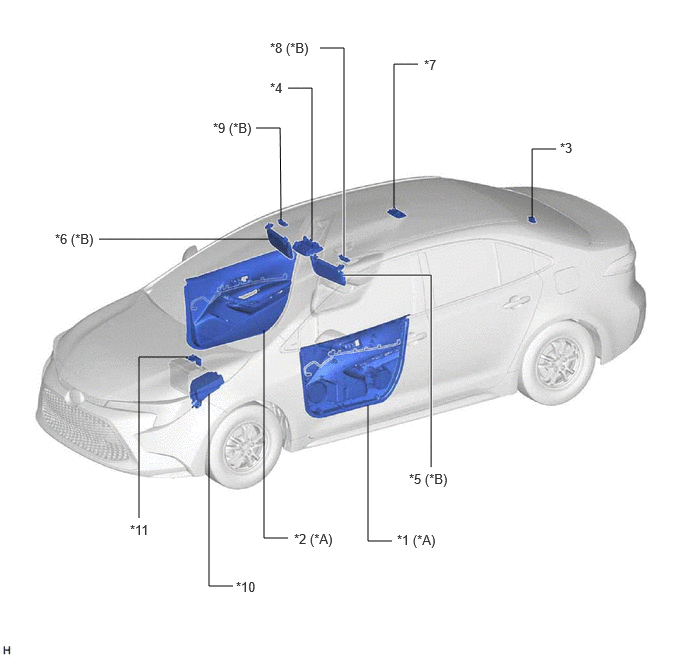

| *A | w/ Ambient Illumination Light | *B | w/ Vanity Light |
| *1 | DOOR AMBIENT ILLUMINATION LIGHT LH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH) | *2 | DOOR AMBIENT ILLUMINATION LIGHT RH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH) |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *4 | MAP LIGHT ASSEMBLY |
| *5 | VISOR ASSEMBLY LH | *6 | VISOR ASSEMBLY RH |
| *7 | REAR ROOM LIGHT (NO. 1 ROOM LIGHT ASSEMBLY) | *8 | VANITY LIGHT ASSEMBLY LH |
| *9 | VANITY LIGHT ASSEMBLY RH | *10 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - D/C CUT FUSE |
| *11 | FUSIBLE LINK BLOCK ASSEMBLY - J/B-AM FUSE |
- | - |

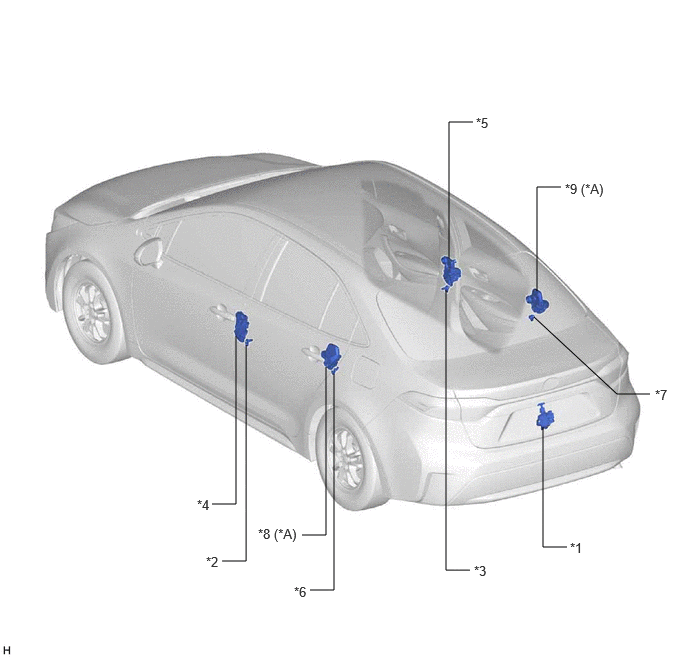

| *A | w/ Unlock Detection Switch | - | - |
| *1 | LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH | - | - |
| *A | w/ Ambient Illumination Light | *B | w/ Smart Key System |
| *C | w/ Glove Box Light | - | - |
| *1 | ENGINE SWITCH | *2 | GLOVE BOX LIGHT ASSEMBLY |
| *3 | CENTER TRAY ILLUMINATION LIGHT (INSTRUMENT PANEL LIGHT ASSEMBLY) | *4 | CUP HOLDER LIGHT (CONSOLE BOX POCKET GARNISH) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE - DOME FUSE - ACC RELAY - IG1-NO. 1 RELAY - DOME CUT RELAY |
*8 | DLC3 |
