Fuel Lid Opener System Operation Message Display Malfunction [01/2019 - 09/2022]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

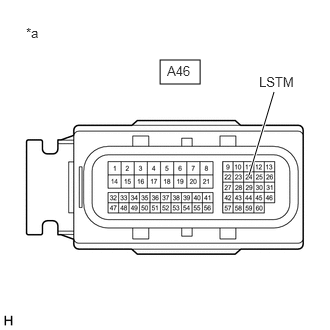

1. Disconnect the A46 ECM connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A46-24 (LSTM) - Body ground	Power switch off	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  3

Result:

OK

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the ECM connector.
2. Remove the combination meter assembly with the connector(s) still connected.
3. Operate the fuel lid opener switch.
4. Check the signal waveform according to the condition(s) in the table below.
   1. WAVEFORM 1:



      Item	Condition
      Tester Connection	I5-33 (LST1) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Condition	The following message (interrupt display) being displayed on the multi-information display: Please Wait Fuel Door Opening

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This waveform is output when the internal pressure of the fuel tank is higher than the ambient pressure when the fuel lid opener switch is operated.

   2. WAVEFORM 2:



      Item	Condition
      Tester Connection	I5-33 (LST1) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Condition	The following message (interrupt display) being displayed on the multi-information display: Ready to Refuel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   3. WAVEFORM 3:



      Item	Condition
      Tester Connection	I5-33 (LST1) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Condition	The following message (interrupt display) being displayed on the multi-information display: Close Fuel Lid

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This waveform is output when the fuel lid opener switch is operated if the fuel lid is open and any of the following conditions are met:

      • The vehicle has been driven for 1 km (0.6 mile) or more at a speed of 50 km/h (31 mph) or more.
      • 30 minutes or more have elapsed since the fuel lid opener switch was operated.

   OK

   All of the waveforms are output normally.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

Result:

NG

REPLACE ECM. Refer to  REMOVAL [01/2019 - 04/2020]  , or refer to  REMOVAL [04/2020 - 09/2022]

1. Disconnect the I5 combination meter assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A46-24 (LSTM) - I5-33 (LST1)	Always	Below 1 Ω
   A46-24 (LSTM) or I5-33 (LST1) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [01/2019 - 03/2019]  , or refer to  REMOVAL [03/2019 - 09/2022]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
