Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

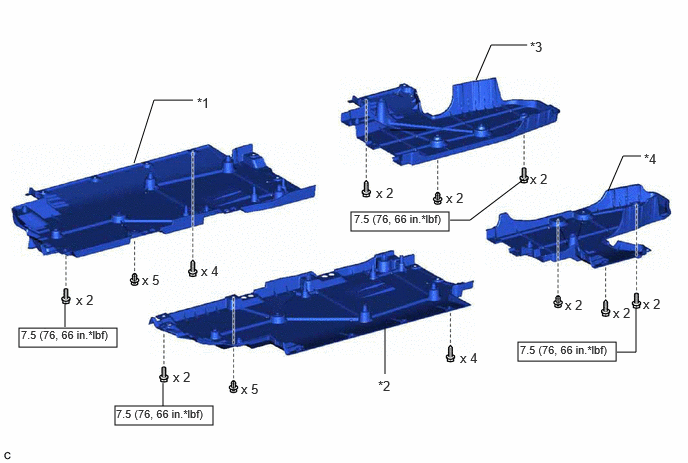

| *1 |
FRONT FLOOR COVER RH |
*2 |
FRONT FLOOR COVER LH |
| *3 |
REAR FLOOR SIDE MEMBER COVER RH |
*4 |
REAR FLOOR SIDE MEMBER COVER LH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

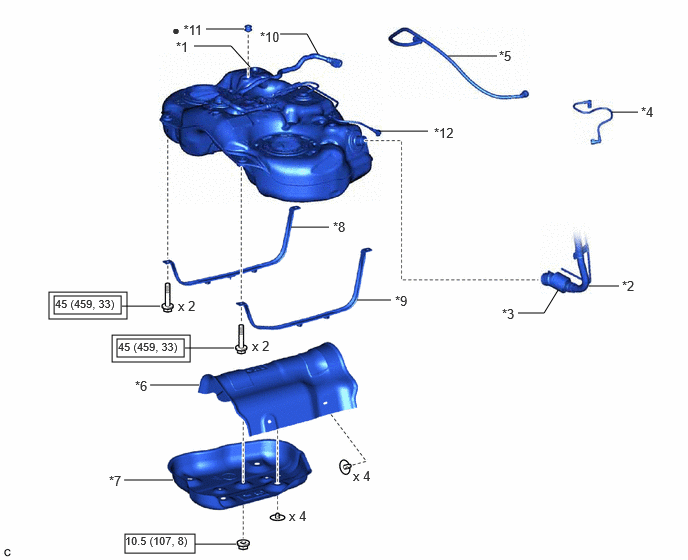

| *1 |
FUEL TANK SUB-ASSEMBLY |
*2 |
FUEL TANK FILLER PIPE SUB-ASSEMBLY |
| *3 |
FUEL TANK TO FILLER PIPE HOSE |
*4 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *5 |
FUEL RETURN VENT TUBE SUB-ASSEMBLY |
*6 |
NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY |
| *7 |
NO. 2 FUEL TANK PROTECTOR |
*8 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
| *9 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
*10 |
FUEL CUT-OFF TUBE |
| *11 |
NO. 6 FUEL TANK CUSHION |
*12 |
FUEL TANK BREATHER TUBE SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
