Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

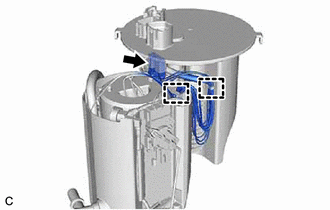

    1. Disconnect the fuel sender gauge assembly connector.
      GTY1105639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to disconnect the wire harness from the fuel suction plate sub-assembly.
      NOTE:
      • Do not damage the wire harness.
      • When disengaging each wire harness from the clamp, disengage one wire at a time.

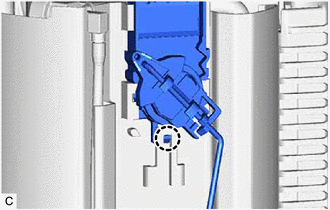

    3. Disengage the claw to remove the fuel sender gauge assembly from the fuel sub-tank.
      GTY1109271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.

  3. REMOVE REAR FLOOR SERVICE HOLE COVER (for RH Side)

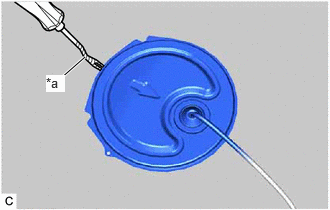

    1. Using a clip remover with its tip wrapped with protective tape, remove the rear floor service hole cover and butyl tape.
      GTY1109094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

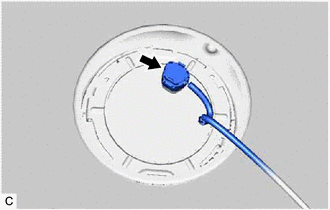

    2. Disconnect the fuel tank vent tube assembly connector.
      GTY1107580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 FUEL TUBE CLAMP

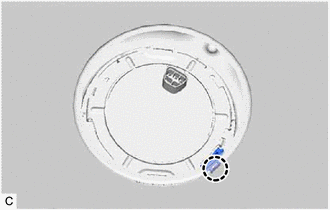

    1. Disengage the claw to remove the No. 1 fuel tube clamp from the fuel pump gauge retainer.
      GTY1107579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL PUMP GAUGE RETAINER (for RH Side)

    HINT:

    Perform the same procedure as for the fuel suction tube with pump and gauge assembly.

    See step  12

  6. REMOVE FUEL TANK VENT TUBE ASSEMBLY

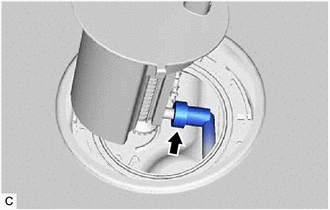

    1. Disconnect the fuel return vent tube sub-assembly and remove the fuel tank vent tube assembly from the fuel tank sub-assembly.

      Refer to PRECAUTION [11/2022 - ]

      GTY1107578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to bend the arm of the No. 2 fuel sender gauge assembly.
      • When disconnecting the fuel tube connector, do not excessively pull on the fuel return vent tube sub-assembly.

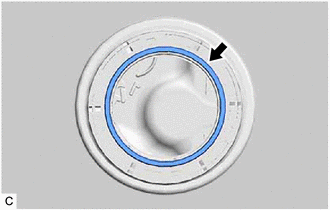

    2. Remove the fuel suction tube set gasket from the fuel tank sub-assembly.
      GTY1107577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 FUEL SENDER GAUGE ASSEMBLY

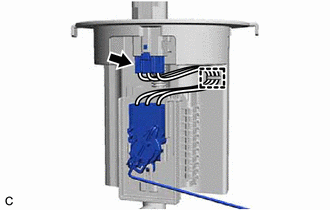

    1. Disconnect the No. 2 fuel sender gauge assembly connector.
      GTY1107574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the wire harness from the fuel tank vent tube assembly.
      NOTE:
      • Do not damage the wire harness.
      • When disengaging each wire harness from the clamp, disengage one wire at a time.

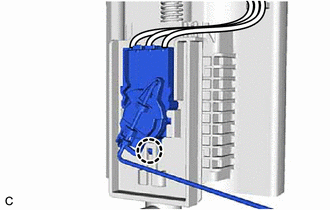

    3. Disengage the claw to remove the No. 2 fuel sender gauge assembly from the fuel tank vent tube assembly.
      GTY1107573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to bend the arm of the No. 2 fuel sender gauge assembly.
