Components [11/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

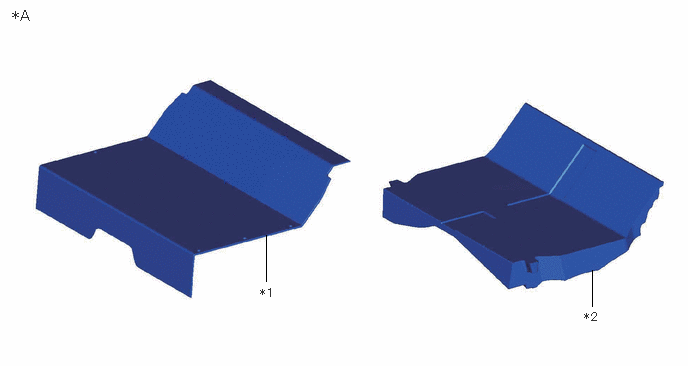

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | w/ Rear Seat Assembly |
| *C | w/o Rear Seat Assembly | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | SPARE WHEEL CUSHION |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Rear Seat Assembly | - | - |
| *1 | REAR NO. 1 FLOOR BOARD | *2 | REAR NO. 1 FLOOR BOARD PANEL |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *2 | FUEL RETURN VENT TUBE SUB-ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | NO. 1 FUEL TUBE CLAMP |
| *5 | TUBE JOINT CLIP | *6 | FUEL PUMP GAUGE RETAINER |
| *7 | BUTYL TAPE | *8 | REAR FLOOR SERVICE HOLE COVER (for LH Side) |
| *9 | FUEL SUCTION TUBE SET GASKET | - | - |
| • | Non-reusable part | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL SUCTION PLATE SUB-ASSEMBLY | *2 | FUEL SUB-TANK |
| *3 | FUEL PUMP FILTER HOSE | *4 | FUEL FILTER |
| *5 | FUEL PUMP | *6 | FUEL PUMP FILTER |
| *7 | FUEL PUMP HARNESS | *8 | FUEL SENDER GAUGE ASSEMBLY |
| *9 | O-RING | *10 | FUEL PUMP SPACER |
| *11 | HARNESS PROTECTOR | - | - |
| • | Non-reusable part | - | - |
