Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT ASSEMBLY (w/ Rear Seat Assembly)

    Refer to REMOVAL [01/2019 - ]

  2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE SPARE WHEEL CUSHION

    Refer to PROCEDURE - Step 5

  5. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 16

  7. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR NO. 1 FLOOR BOARD (w/o Rear Seat Assembly)

    Refer to PROCEDURE - Step 32

  9. REMOVE REAR NO. 1 FLOOR BOARD PANEL (w/o Rear Seat Assembly)

    Refer to PROCEDURE - Step 33

  10. REMOVE SIDE TRIM COVER LH (w/o Rear Seat Assembly)

    Refer to PROCEDURE - Step 34

  11. REMOVE REAR PILLAR COVER LH (w/o Rear Seat Assembly)

    Refer to PROCEDURE - Step 35

  12. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 36

  13. REMOVE CENTER FLOOR CROSSMEMBER BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 39

  15. REMOVE FUEL PUMP CONTROL ECU

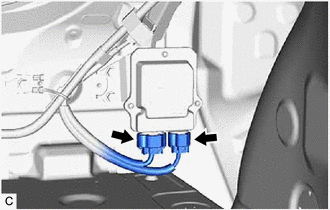

    1. Disconnect the 2 fuel pump control ECU connectors.
      GTY1109260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

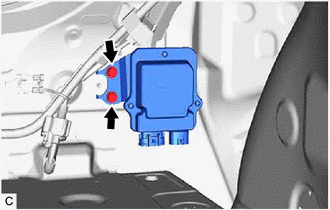

    2. Remove the 2 bolts and fuel pump control ECU from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

      GTY1107523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 FUEL PUMP CONTROL ECU BRACKET

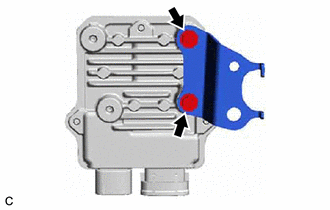

    1. Remove the 2 bolts and No. 2 fuel pump control ECU bracket from the fuel pump control ECU.
      GTY1107521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
