Components [09/2022 - 11/2022]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

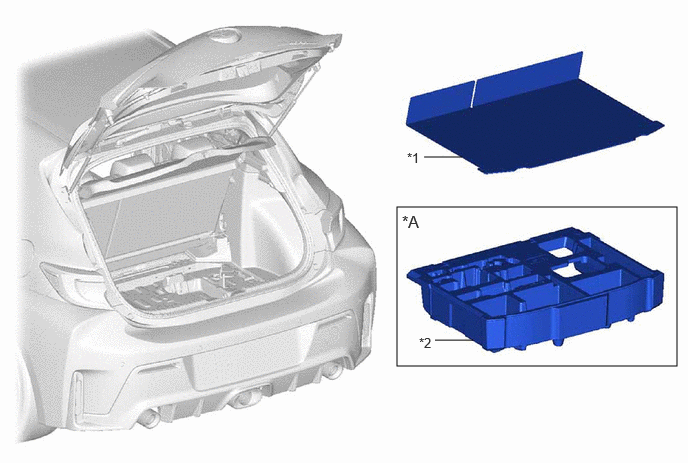

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | SPARE WHEEL CUSHION |

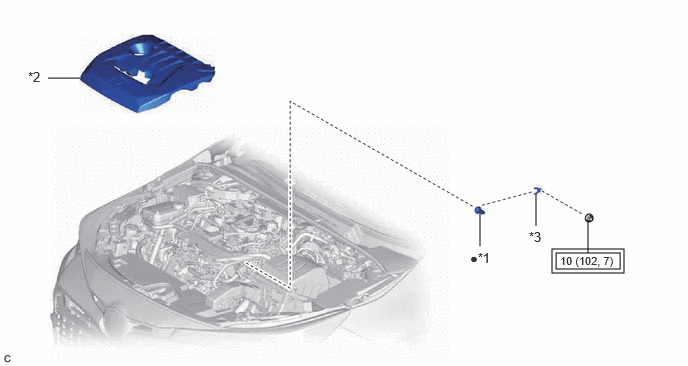

Fig 2: Fuel Pressure Sensor Replacement Components With Torque Specifications [09/2022 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 FUEL PRESSURE SENSOR | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | NO. 2 FUEL PRESSURE SENSOR HOLDER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
