Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 2 [09/2024 - ]

  3. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to REMOVAL [09/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

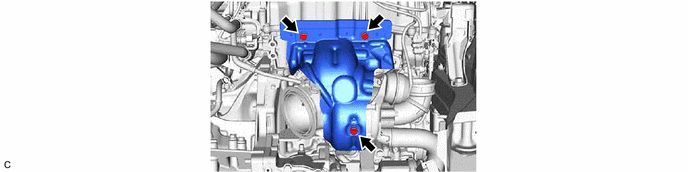

  4. REMOVE NO. 1 TURBO INSULATOR
    1. GTY1103543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

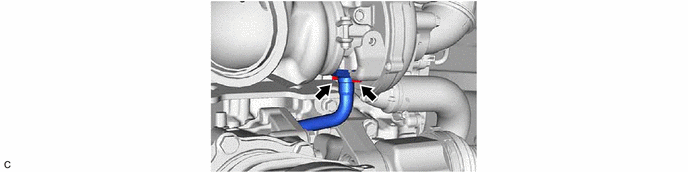

  5. SEPARATE TURBO OIL OUTLET PIPE
    1. GTY1103544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

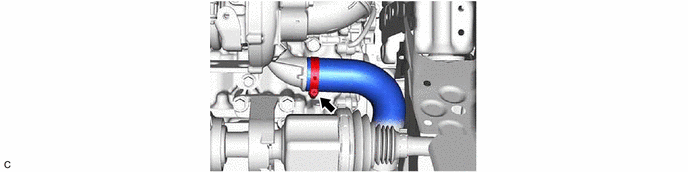

  6. DISCONNECT NO. 2 AIR HOSE
    1. GTY1103541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

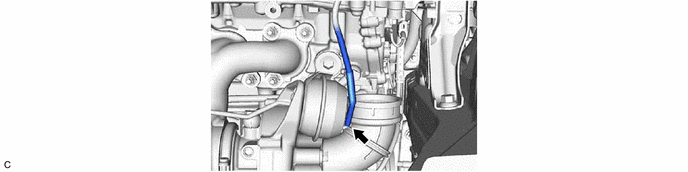

  7. DISCONNECT NO. 2 VACUUM TRANSMITTING HOSE
    1. GTY1108431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

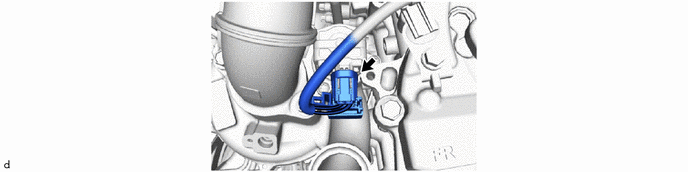

  8. DISCONNECT WIRE HARNESS
    1. GTY1105165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

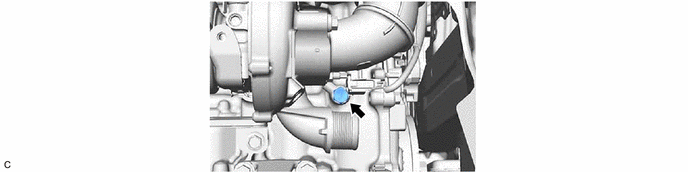

  9. REMOVE TURBO OIL INLET PIPE UNION BOLT
    1. GTY1103540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

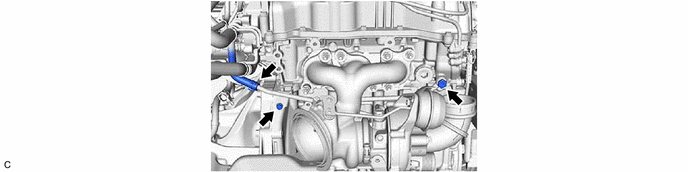

  10. DISCONNECT NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. GTY1103538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

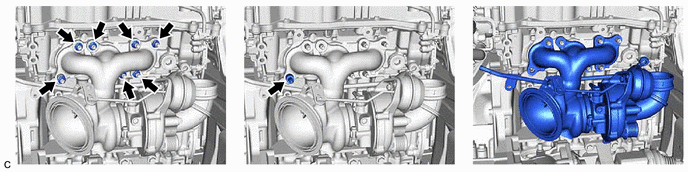

  11. REMOVE TURBOCHARGER SUB-ASSEMBLY
    1. NOTE:

      If a stud bolt is deformed or its threads are damaged, replace it.

      GTY1103487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 7 nuts and collar.
      2. Using an E8 "TORX" socket wrench, remove the 1 stud bolts.

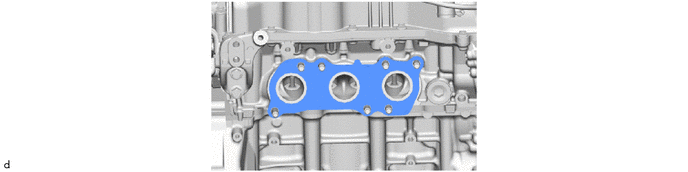

  12. REMOVE EXHAUST MANIFOLD TO HEAD GASKET
    1. GTY1107678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

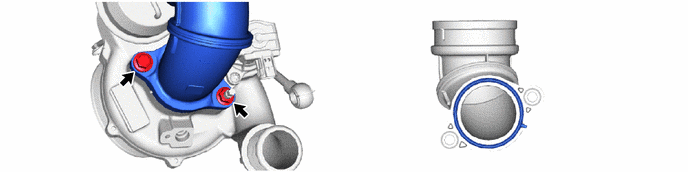

  13. DISCONNECT COMPRESSOR INLET ELBOW
    1. GTY1107474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

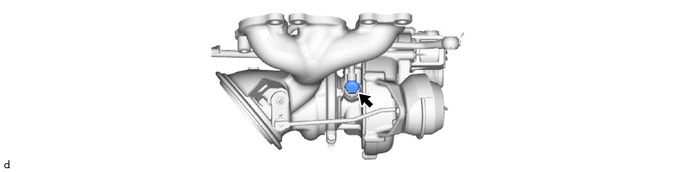

  14. REMOVE TURBO OIL INLET PIPE SUB-ASSEMBLY
    1. GTY1105161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

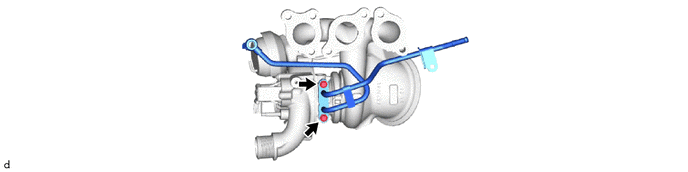

  15. REMOVE NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. GTY1105162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE TURBO WATER PIPE GASKET
    1. GTY1109248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

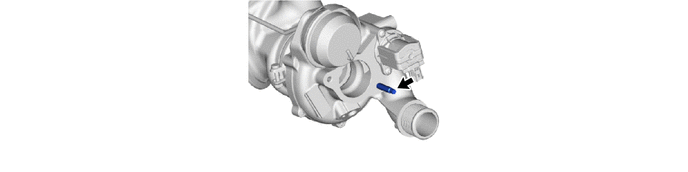

  17. REMOVE STUD BOLT
    1. GTY1107062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
