Inspection [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TURBOCHARGER SUB-ASSEMBLY

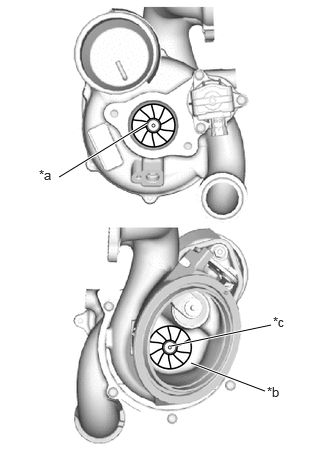

    1. Check if the compressor side impeller and exhaust side turbine are damaged or defective.

      HINT:

      Wear on the center of the exhaust side turbine is not a malfunction.

      GTY1020221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Compressor Side Impeller
      *b Exhaust Side Turbine
      *c Center of Exhaust Side Turbine

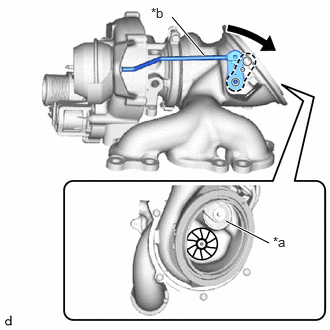

    2. Move the rod by hand and check that the waste gate valve is not stuck.
      GTY1020352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waste Gate Valve
      *b Rod

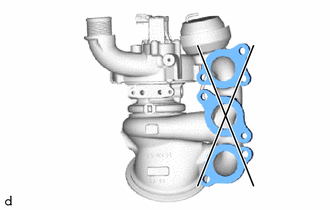

    3. Using a straightedge and feeler gauge, check the turbocharger sub-assembly installation surface for warpage.

      Standard Warpage

      0.20 mm (0.0079 in.) or less

      If the result is not as specified, replace the turbocharger sub-assembly.

      GTY1020446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

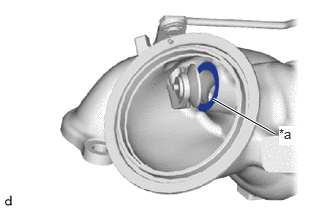

    4. Close the waste gate valve and using a feeler gauge, measure the clearance between the waste gate valve and the contact surface of the valve port of the turbine with valve housing sub-assembly waste gate.

      Standard Clearance

      0.15 mm (0.00591 in.) or less

      If the result is not as specified, replace the turbocharger sub-assembly.

      GTY1020230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Contact Surface of Waste Gate Valve Port

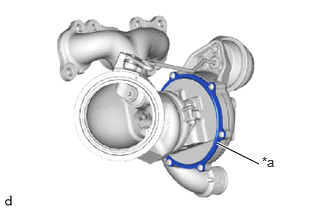

    5. Check the areas shown in the illustration for oil leakage.
      GTY1020437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Area to be Checked

      OK

      There are no oil leaks from the compressor with bearing housing sub-assembly.

      NOTE:

      Oil on the inlet side of the compressor is from oil in the blow-by gas and is not a malfunction.

      If the result is not as specified, replace the turbocharger sub-assembly.

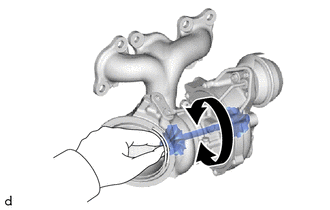

    6. Rotate the compressor wheel by hand as shown in the illustration, and check that the compressor wheel rotates smoothly.

      OK

      Compressor wheel rotates smoothly.

      HINT:

      If the compressor wheel does not rotate smoothly, replace the turbocharger sub-assembly.

      GTY1019737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

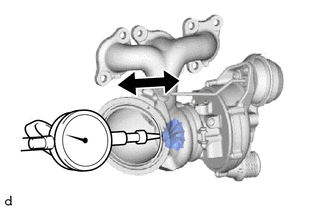

    7. Check that the turbine shaft rotates smoothly.
      1. Set a dial indicator to the outlet side of the turbine shaft.
        GTY1019742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Move the turbine shaft in the axial direction and check for play.

        Standard Axial Play

        0.20 mm (0.0079 in.) or less

        If the result is not as specified, replace the turbocharger sub-assembly.

  2. INSPECT WASTE GATE VALVE ACTUATOR
    1. Check the waste gate valve actuator hose for cracks and damage.

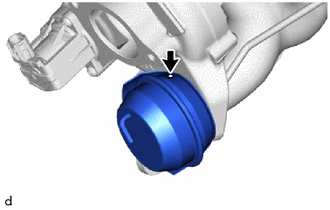

    2. Check the waste gate valve actuator with bracket assembly air hole.
      1. Check that the waste gate valve actuator air hole shown in the illustration is not clogged.
        GTY1019740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

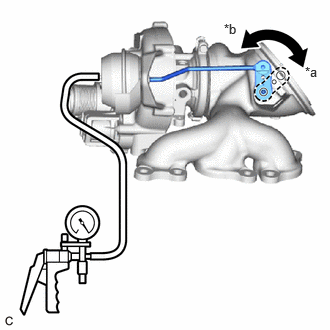

    3. Check the waste gate valve actuator with bracket assembly travel.
      1. Connect a vacuum pump to the waste gate valve actuator.
      2. Using a vacuum pump, apply a vacuum of 30 +/- 4.0 kPa (225 +/- 30 mmHg, 8.8 +/- 1.2 in. Hg) to the diaphragm chamber to operate the waste gate valve actuator.

        OK

        The waste gate valve closes when vacuum is applied.

        NOTE:

        Do not apply a vacuum of 65 kPa (488 mmHg, 19.2 in. Hg) or more to the waste gate valve actuator as doing so may damage the diaphragm.

        HINT:

        If the waste gate valve actuator does not operate, replace the turbocharger sub-assembly.

        GTY1104236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Vacuum at 0 kPa (0 mmHg, 0 in.Hg)
        *b Vacuum at 30 kPa (225 mmHg, 8.8 in. Hg)

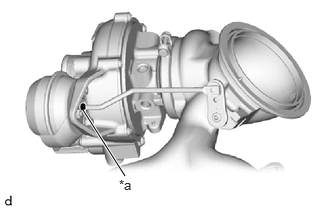

      3. Place a paint mark on the waste gate valve actuator rod from the waste gate valve actuator bracket as shown in the illustration.
        GTY1020000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Paint Mark

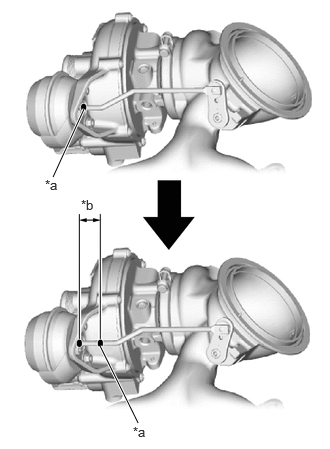

      4. Using a vernier caliper, measure the distance from the waste gate valve actuator bracket to the paint mark at a vacuum of 0 kPa (0 mmHg, 0 in. Hg).
        GTY1020332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Paint Mark
        *b Travel of Waste Gate Valve Actuator
        Vacuum at 0 kPa (0 mmHg, 0 in. Hg)

        Standard

        15 mm (0.591 in.) or more

        If the result is not as specified, replace the turbocharger sub-assembly.

        NOTE:

        If the result is not as specified when replacing the turbocharger sub-assembly, and check the travel of the waste gate valve actuator again.

      5. Disconnect the vacuum pump from the waste gate valve actuator.

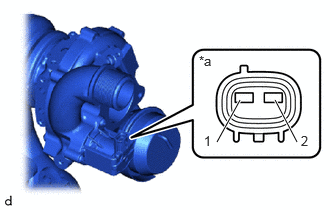

  3. INSPECT INTAKE AIR CONTROL VALVE (AIR BY-PASS VALVE ASSEMBLY)
    1. Inspect the resistance.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 2 20°C (68°F) 8.6 to 9.2 Ω
        GTY1019487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Air By-pass Valve Assembly)

        If the result is not as specified, replace the turbocharger sub-assembly.
