Components [09/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

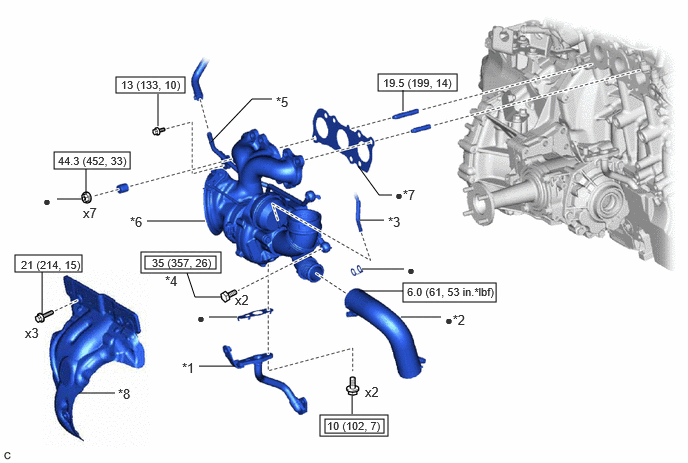

| Callout |
Description |
Callout |
Description |
| *1 |
TURBO OIL OUTLET PIPE |
*2 |
NO. 2 AIR HOSE |
| *3 |
NO. 2 VACUUM TRANSMITTING HOSE |
*4 |
TURBO OIL INLET PIPE UNION BOLT |
| *5 |
NO. 1 TURBO WATER PIPE SUB-ASSEMBLY |
*6 |
TURBOCHARGER SUB-ASSEMBLY |
| *7 |
EXHAUST MANIFOLD TO HEAD GASKET |
*8 |
NO. 1 TUBO INSULATOR |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

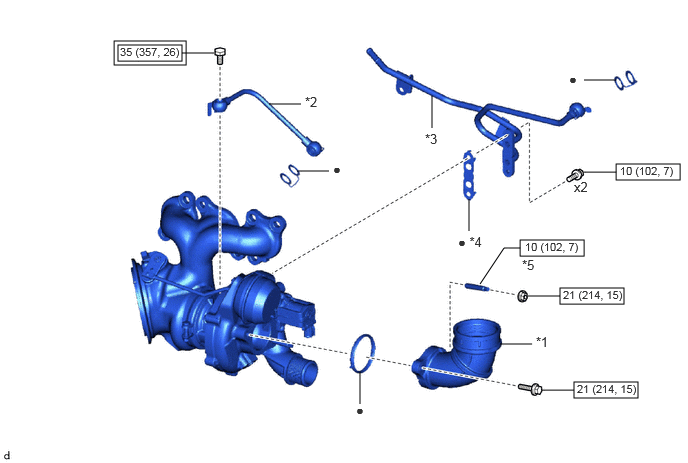

| Callout |
Description |
Callout |
Description |
| *1 |
COMPRESSOR INLET ELBOW |
*2 |
TURBO OIL INLET PIPE SUB-ASSEMBLY |
| *3 |
NO. 1 TURBO WATER PIPE SUB-ASSEMBLY |
*4 |
TURBO WATER PIPE GASKET |
| *5 |
STUD BOLT |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
